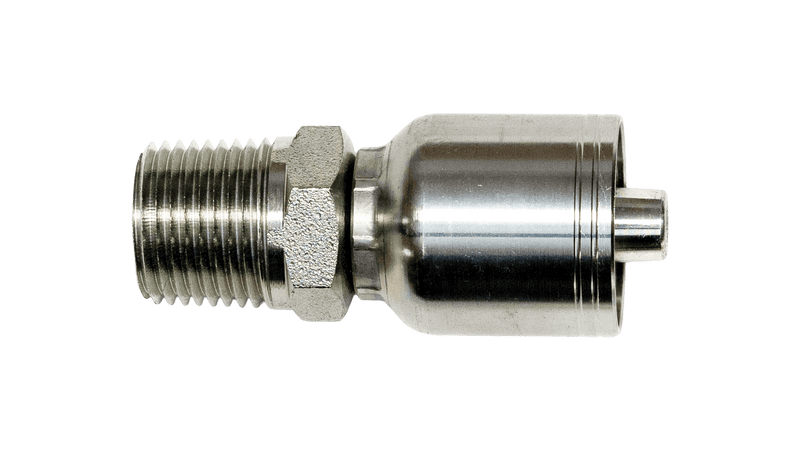

GM Series 101GM Male NPTF Pipe Rigid

GM Series 101GM Male NPTF Pipe Rigid

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

NPT GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B H
INCH INCH MM INCH MM INCH
101GM-4-4 1/8 x 27 1/4 2.01 51 1.26 32 9/16
101GM-6-4 3/8 x 18 1/4 1.86 47 1.11 28 11/16
101GM-6-6 3/8 x 18 3/8 2.37 60 1.34 34 3/4
101GM-8-6 1/2 x 14 3/8 2.39 61 1.36 35 7/8
101GM-8-8 1/2 x 14 1/2 2.84 72 1.58 40 7/8
101GM-12-8 3/4 x 14 1/2 2.68 68 1.42 36 1-1/16
101GM-12-12 3/4 x 14 3/4 3.09 78 1.65 42 1-1/16
101GM-16-12 1 x 11-1/2 3/4 3.09 78 1.65 42 1-3/8
101GM-16-16 1 x 11-1/2   1.00 2.59 66 1.97 50 1-3/8
101GM-20-20 1-1/4 x 11-1/2 1 1/4 4.08 104 2.39 61 1-3/4
101GM-24-24 1-1/2 x 11-1/12 1 1/2 3.5 89 2.13 54 2"
101GM-32-32 2 x 11-1/2   2.00 4.05 103 2.27 58 2-1/2
