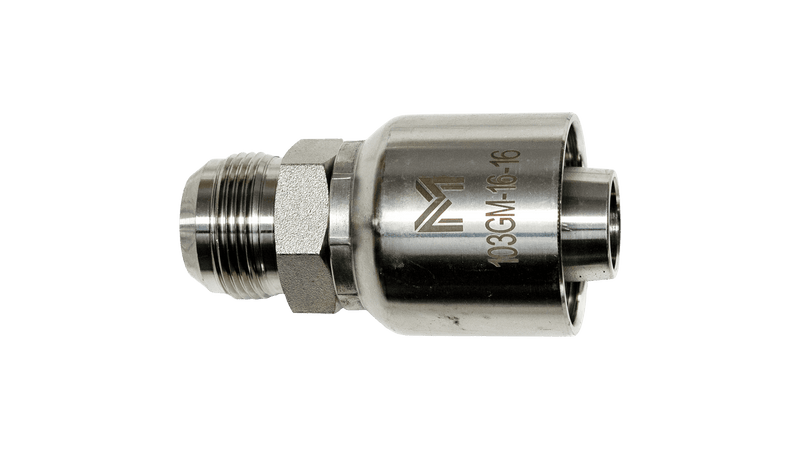

JIC GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| Part Number | Thread | HOSE ID | A | B | H INCH |
|||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | |||
| 103GM 4-4 | 1/4" | 7/12 X 20 | 1/4" | 1.85 | 47 | 0.98 | 25 | 9/16" |
| 103GM 6-4 | 9/16" | 9/16 X 18 | 1/4" | 1.89 | 48 | 1.02 | 26 | 11/16" |
| 103GM 6-6 | 9/16" | 9/16 X 18 | 3/8" | 2.17 | 55 | 1.02 | 26 | 3/4" |
| 103GM 6-8 | 1/2" | 3/4 X 16 | 3/8" | 2.28 | 58 | 1.14 | 29 | 7/8" |
| 103GM 8-8 | 1/2" | 3/4 X 16 | 1/2" | 2.52 | 64 | 1.18 | 30 | 7/8" |
| 103GM 10-8 | 5/8" | 7/8 X 14 | 1/2" | 2.64 | 67 | 1.3 | 33 | 15/16" |
| 103GM 10-10 | 5/8" | 7/8 X 14 | 5/8" | 2.93 | 72 | 1.34 | 34 | 15/16" |
| 103GM 12-12 | 3/4" | 1-1/16 X 12 | 3/4" | 3.07 | 78 | 1.57 | 40 | 1-1/8" |
| 103GM 16-16 | 1" | 1-5/16 X 12 | 1" | 3.46 | 88 | 1.69 | 43 | 1-3/8" |
