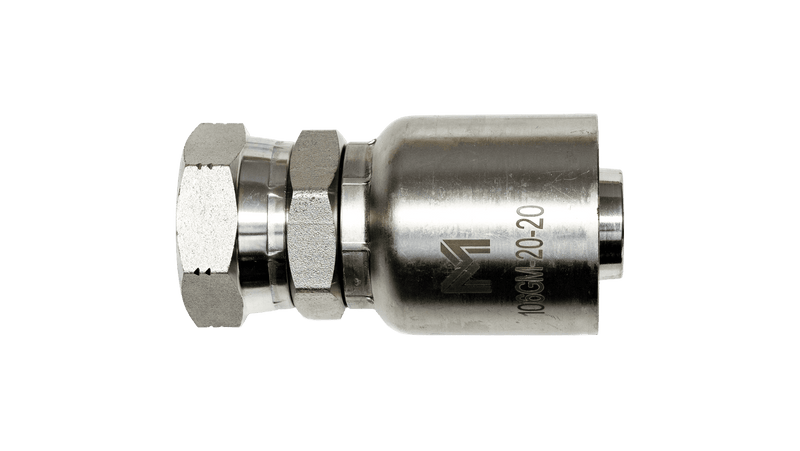

GM Series 106GM Flare Female Swivel JIC 37°

GM Series 106GM Flare Female Swivel JIC 37°

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

JIC GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

Part Number Thread HOSE ID A B H W
INCH INCH INCH MM INCH MM INCH INCH
106GM 4-4 1/4" 7/16 X 20 1/4" 1.94 49 1.19 30 9/16" 9/16"
106GM 4-6 1/4" 7/16 X 20 3/8" 2.28 58 1.14 29 11/16" 9/16"
106GM 5-4 5/16" 1/2 X 20 1/4" 2.36 60 1.18 30 9/16" 5/8"
106GM 5-6 5/16" 1/2 X 20 3/8" 2.32 59 1.18 30 11/16" 5/8"
106GM 6-4 9/16" 9/16 X 18 1/4" 2.09 53 1.22 31 9/16" 11/16"
106GM 6-5 9/16" 9/16 X 18 5/16" 2.10 53 1.35 34 11/16" 11/16"
106GM 6-6 9/16" 9/16 X 18 3/8" 2.36 60 1.22 31 11/16" 11/16"
106GM 6-8 9/16" 9/16 X 18 1/2" 2.56 65 1.22 31 13/16" 11/16"
106GM 8-6 1/2" 3/4 X 16 3/8" 2.68 68 1.34 34 11/16" 7/8"
106GM 8-8 1/2" 3/4 X 16 1/2" 2.64 67 1.30 33 13/16" 7/8"
106GM 8-10 1/2" 3/4 X 16 5/8" 2.91 74 1.42 36 15/16" 7/8"
106GM 8-12 1/2" 3/4 X 16 3/4" 3.03 77 1.54 39 1-1/16" 7/8"
106GM 10-6 5/8" 7/8 X 14 3/8" 2.56 65 1.42 36 7/8" 1
106GM 10-8 5/8" 7/8 X 14 1/2" 2.44 62 1.50 38 7/8" 1
106GM 10-10 5/8" 7/8 X 14 5/8" 2.99 76 1.50 38 15/16" 1
106GM 10-12 5/8" 7/8 X 14 3/4" 3.11 79 1.61 41 1-1/16" 1
106GM 12-8 3/4" 1-1/16 X 12 1/2" 3.03 77 1.69 43 1-1/16" 1-1/4"
106GM 12-10 3/4" 1-1/16 X 12 5/8" 3.23 82 1.73 44 1-1/16" 1-1/4"
106GM 12-12 3/4" 1-1/16 X 12 3/4" 3.27 83 1.77 45 1-1/16" 1-1/4"
106GM 12-16 3/4" 1-1/16 X 12 1" 3.62 92 1.85 47 1-3/8" 1-1/4"
106GM 14-12 7/8" 1-3/16 X 12 3/4" 3.18 81 1.74 44 1-1/4" 1-3/8"
106GM 16-12 1" 1-5/16 X 12 3/4" 3.35 85 1.85 47 1-1/4" 1-1/2"
106GM 16-16 1" 1-5/16 X 12 1" 3.70 94 1.93 49 1-3/8" 1-1/2"
106GM 16-20 1" 1-5/16 X 12 1-1/4" 4.53 115 2.13 54 1-7/8" 2
106GM 20-16 1" 1-5/16 X 12 1" 3.86 98 2.09 53 1-5/8" 2
106GM 20-20 1-1/4" 1-5/8 X 12 1-1/4" 4.53 115 2.13 54 1-7/8" 2
106GM 24-20 1-1/2" 1-7/8 X 12 1-1/4" 4.53 115 2.13 54 1-7/8" 2
106GM 24-24 1-1/2" 1-7/8 X 12 1-1/2" 4.88 124 2.36 60 2-1/8" 2-1/4"
106GM 32-32 2" 2-1/1 X 12 2" 5.43 138 2.87 73 2-1/2" 2-7/8"
