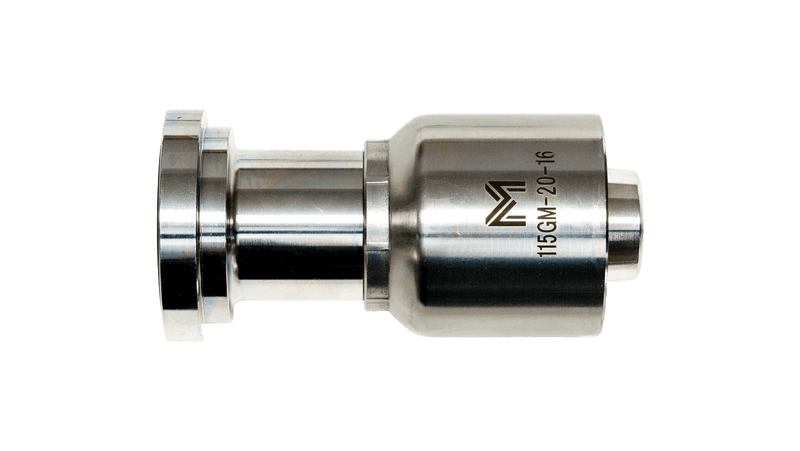

GM Series 115GM SAE Code 61 Flange Head

GM Series 115GM SAE Code 61 Flange Head

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

CODE 61 GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. FLANGE HOSE ID A B F
INCH INCH MM INCH MM INCH
115GM-8-8 1/2" 1/2" 3.46 88 2.13 54 1-3/16
115GM-12-8 3/4" 1/2" 3.66 93 2.32 59 1-1/2
115GM-12-12 3/4" 3/4" 3.54 90 2.05 52 1-1/2
115GM-16-12 1" 3/4" 2.80 71 1.30 33 1-3/4
115GM-16-16 1" 1" 4.21 107 2.44 62 1-3/4
115GM-20-16 1-1/4" 1" 3.78 96 2.01 51 2
115GM-20-20 1-1/4" 1-1/4" 5.31 135 2.91 74 2
115GM-24-20 1-1/2" 1-1/4" 5.08 135 2.68 68 2-3/8
115GM-24-24 1-1/2" 1-1/2" 5.31 135 2.80 71 2-3/8
115GM-32-24 2" 1-1/2" 5.94 151 3.43 87 2-7/8
115GM-32-32 2" 2" 5.94 151 3.35 85 2-13/16
