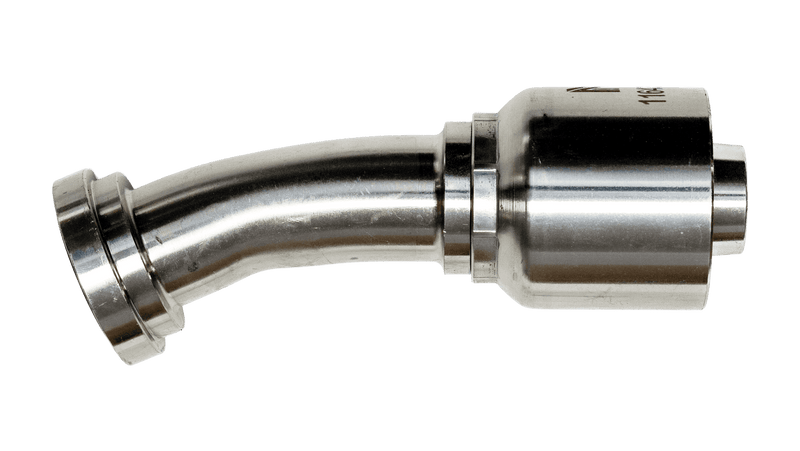

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 116GM-12-12 | 3/4" | 3/4" | 4.02 | 102 | 2.52 | 64 | 1-1/2 | 0.47 |
| 116GM-16-12 | 1" | 3/4" | 3.90 | 99 | 2.40 | 61 | 1-3/4 | 0.47 |
| 116GM-16-16 | 1" | 1" | 4.76 | 12 | 2.99 | 76 | 1-3/4 | 0.51 |
| 116GM-20-16 | 1-1/4" | 1" | 4.72 | 120 | 2.95 | 75 | 2 | 0.51 |
| 116GM-20-20 | 1-1/4" | 1-1/4" | 5.87 | 149 | 3.46 | 88 | 2 | 0.55 |
