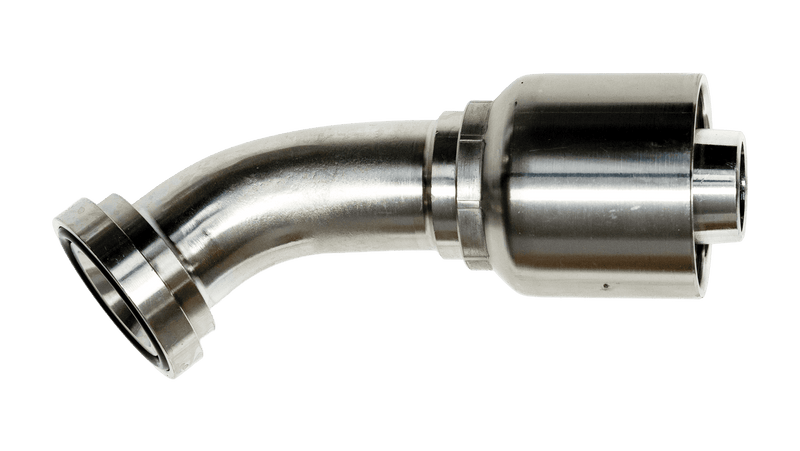

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 117GM-8-8 | 1/2" | 1/2" | 3.43 | 87 | 2.09 | 53 | 1-3/16 | 0.91 |
| 117GM-12-8 | 3/4" | 1/2" | 3.43 | 87 | 2.09 | 53 | 1-1/2 | 0.91 |
| 117GM-12-12 | 3/4" | 3/4" | 4.29 | 109 | 2.80 | 71 | 1-1/2 | 1.10 |
| 117GM-16-12 | 1" | 3/4" | 4.33 | 110 | 2.83 | 72 | 1-3/4 | 1.10 |
| 117GM-16-16 | 1" | 1" | 5.08 | 129 | 3.31 | 84 | 1-3/4 | 1.22 |
| 117GM-20-16 | 1-1/4" | 1" | 5.12 | 130 | 3.35 | 85 | 2 | 1.22 |
| 117GM-20-20 | 1-1/4" | 1-1/4" | 6.38 | 162 | 3.98 | 101 | 2 | 1.38 |
| 117GM-24-24 | 1-1/2" | 1-1/2" | 7.05 | 179 | 4.53 | 115 | 2-3/8 | 1.57 |
| 117GM-32-32 | 2" | 2" | 8.11 | 206 | 5.55 | 141 | 2-13/16 | 1.89 |
