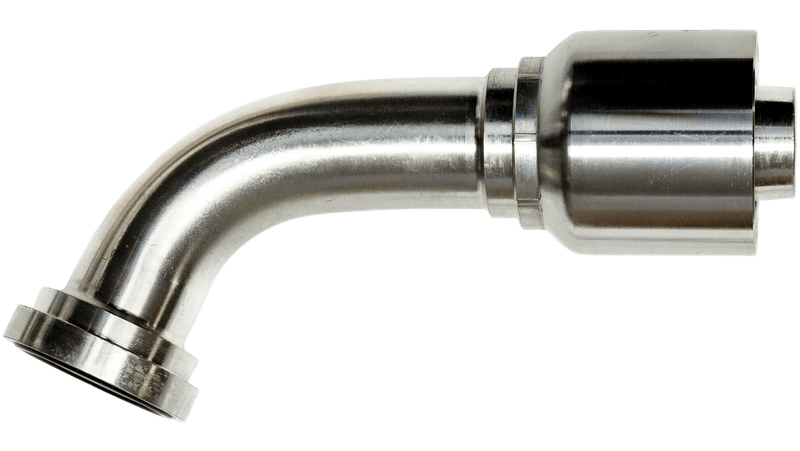

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 118GM-12-12 | 3/4" | 3/4" | 4.69 | 119 | 3.15 | 80 | 1-1/2 | 2.05 |
| 118GM-16-12 | 1" | 3/4" | 4.84 | 123 | 3.31 | 84 | 1-3/4 | 1.81 |
| 118GM-16-16 | 1" | 1" | 5.51 | 141 | 3.79 | 96 | 1-3/4 | 2.36 |
| 118GM-20-16 | 1-1/4" | 1" | 5.83 | 148 | 4.09 | 104 | 2 | 2.01 |
| 118GM-20-20 | 1-1/4" | 1-1/4" | 7.01 | 178 | 4.61 | 117 | 2 | 2.68 |
