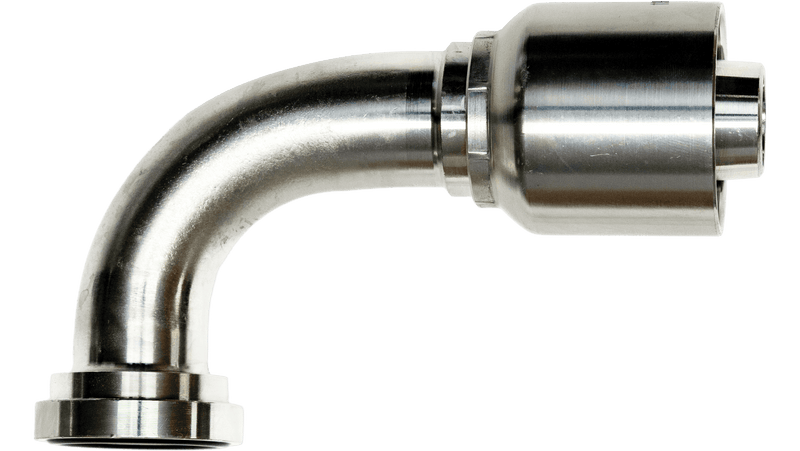

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 119GM-12-12 | 3/4" | 3/4" | 4.02 | 102 | 2.52 | 64 | 1-1/2 | 2.40 |
| 119GM-16-12 | 1" | 3/4" | 3.98 | 101 | 2.48 | 63 | 1-3/4 | 2.40 |
| 119GM-16-16 | 1" | 1" | 4.88 | 124 | 3.11 | 79 | 1-3/4 | 2.72 |
| 119GM-16-20 | 1" | 1-1/4" | 4.88 | 124 | 3.11 | 79 | 2 | 2.76 |
| 119GM-20-16 | 1-1/4" | 1-1/4" | 4.88 | 124 | 3.11 | 79 | 2 | 2.76 |
| 119GM-20-20 | 1-1/2" | 1-1/4" | 6.22 | 158 | 3.82 | 97 | 2 | 3.15 |
| 119GM-24-24 | 1-1/2" | 1-1/2" | 7.01 | 178 | 4.49 | 114 | 2-3/8 | 3.74 |
| 119GM-32-24 | 2" | 1-1/2" | 7.01 | 178 | 4.49 | 114 | 2-13/16 | 3.78 |
| 119GM-32-32 | 2" | 2" | 8.15 | 207 | 5.59 | 142 | 2-13/16 | 5.59 |
