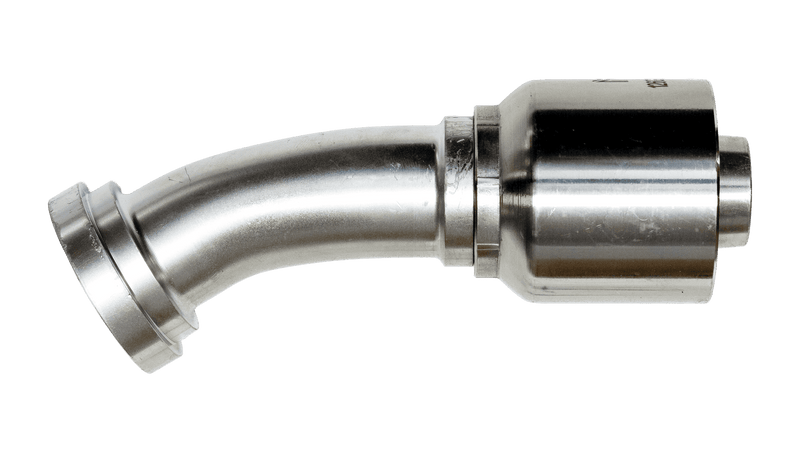

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 126GM-12-12 | 3/4" | 3/4" | 4.13 | 105 | 2.64 | 67 | 1-1/2 | 0.67 |
| 126GM-16-12 | 1" | 3/4" | 4.88 | 105 | 2.64 | 67 | 1-1/2 | .67 |
| 126GM-16-16 | 1" | 1" | 4.88 | 124 | 3.11 | 79 | 1-3/4 | 0.71 |
| 126GM-20-16 | 1-1/4" | 1" | 5.39 | 137 | 3.62 | 92 | 2 | 0.75 |
| 126GM-20-20 | 1-1/4" | 1-1/4" | 6.06 | 154 | 3.66 | 93 | 2 | 0.79 |
