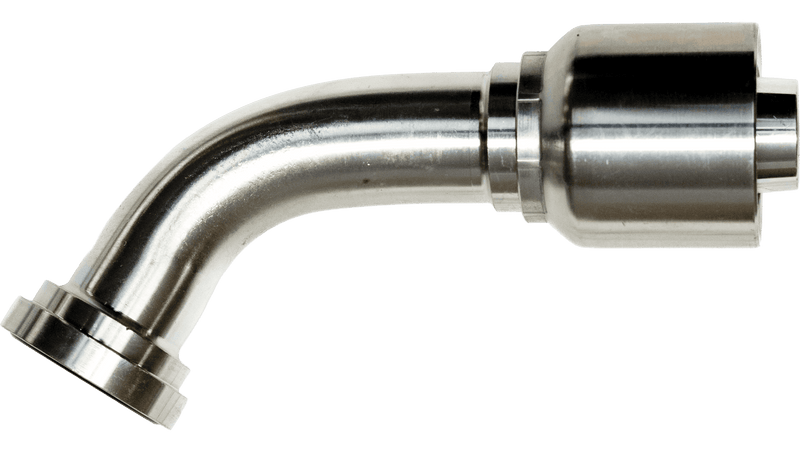

CODE 61 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 127GM-12-12 | 3/4" | 3/4" | 4.29 | 109 | 2.80 | 71 | 1-1/2 | 1.57 |
| 127GM-16-12 | 1" | 3/4" | 5.00 | 127 | 3.50 | 89 | 1-3/4 | 1.57 |
| 127GM-16-16 | 1" | 1" | 5.16 | 131 | 3.39 | 86 | 1-3/4 | 1.73 |
| 127GM-20-16 | 1-1/4" | 1" | 6.46 | 131 | 3.39 | 86 | 1-3/4 | 1.73 |
| 127GM-20-20 | 1-1/4" | 1-1/4" | 6.46 | 164 | 4.06 | 103 | 2 | 1.97 |
