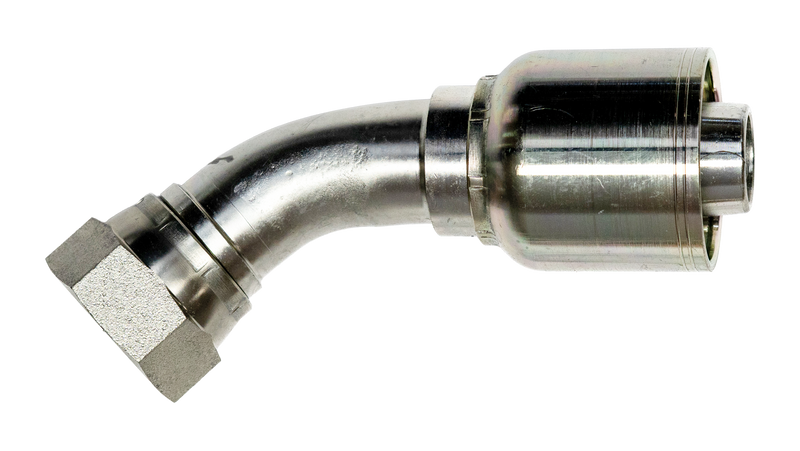

GM Series 137GM JIC 37° Flare Female Swivel 45° Elbow

GM Series 137GM JIC 37° Flare Female Swivel 45° Elbow

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

JIC GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

Part Number Thread HOSE ID A B E W
INCH INCH INCH MM INCH MM INCH INCH
137GM 4-4 1/4" 7/16 X 20 1/4" 1.93 49 1.06 27 0.47 9/16"
137GM 6-4 3/8" 9/16 X 18 1/4" 1.97 50 1.10 28 0.47 11/16"
137GM 6-6 3/8" 9/16 X 18 3/8" 2.39 61 1.26 32 0.51 11/16"
137GM 8-6 1/2" 3/4 X 16 3/8" 2.48 63 1.34 34 0.59 7/8"
137GM 8-8 1/2" 3/4 X 16 1/2" 2.91 74 1.57 40 0.67 7/8"
137GM 10-8 5/8" 7/8 X 14 1/2" 2.95 75 1.61 41 0.71 1"
137GM 10-10 5/8" 7/8 X 14 5/8" 3.35 85 1.85 47 0.79 1"
137GM 12-12 3/4" 1-1/16 X 12 3/4" 3.86 98 2.36 60 1.10 1-1/4"
137GM 16-16 1" 1-5/16 X 12 1" 4.69 119 2.91 74 1.30 1-1/2"
137GM 20-20 1-1/4" 1-5/8 X 12 1-1/4" 5.75 146 3.35 85 1.65 2-1/4"
137GM 24-24 1-1/2" 1-7/8 X 12 1-1/2" 6.81 173 4.29 109 15/16" 7/8"
