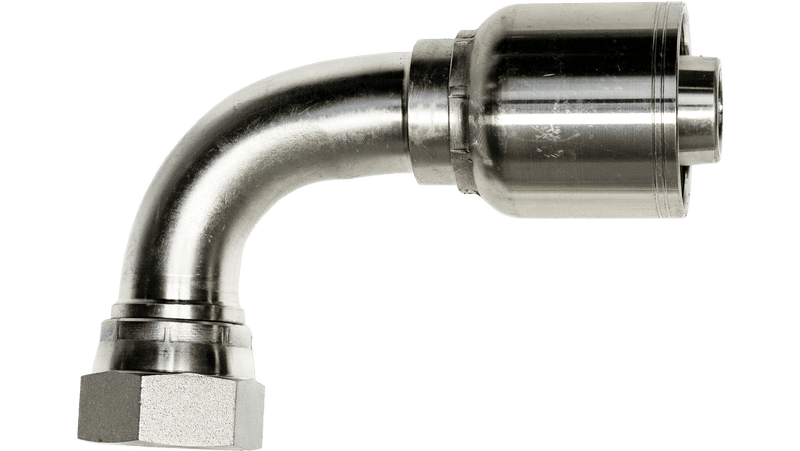

GM Series 139GM JIC 37° Flare Female Swivel 90° Elbow

GM Series 139GM JIC 37° Flare Female Swivel 90° Elbow

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

JIC GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

Part Number Thread HOSE ID A B E W
INCH INCH MM INCH MM INCH INCH
139GM 4-4 1/4" 1/4" 1.69 43 0.83 21 0.91 9/16"
139GM 6-4 3/8" 1/4" 1.69 43 0.83 21 0.91 11/16"
139GM 6-6 3/8" 3/8" 2.17 55 1.02 26 1.02 11/16"
139GM 8-6 1/2" 3/8" 2.17 55 1.02 26 1.10 7/8"
139GM 8-8 1/2" 1/2" 2.64 67 1.30 33 1.30 7/8"
139GM 10-8 5/8" 1/2" 2.64 67 1.30 33 1.38 1"
139GM 10-10 5/8" 5/8" 3.07 78 1.57 40 1.61 1"
139GM 12-12 3/4" 3/4" 3.58 91 2.09 53 2.09 1-1/4"
139GM 16-16 1" 1" 4.45 113 2.68 68 2.44 1-1/2"
139GM 16-20 1" 1-1/4" 5.43 138 3.03 77 2.8 2"
139GM 20-20 1-1/4" 1-1/4" 5.43 138 3.03 77 2.8 2"
139GM 24-24 1-1/2" 1-1/2" 6.77 172 4.25 108 3.86 2-1/4"
139GM 32-32 2" 2" 7.99 203 5.43 138 4.69 2-7/8"
