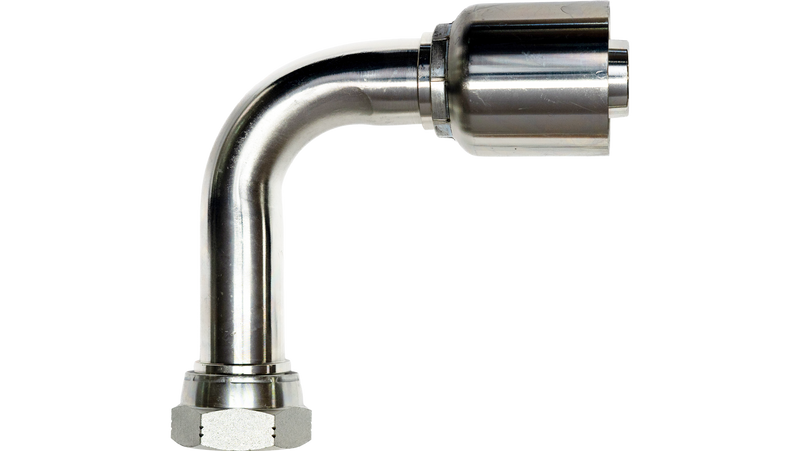

GM Series 141GM JIC 37° Flare Female Swivel 90° Elbow Long Drop

GM Series 141GM JIC 37° Flare Female Swivel 90° Elbow Long Drop

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

JIC GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

Part Number Thread HOSE ID A B E W
INCH INCH MM INCH MM INCH INCH
141GM 4-4 1/4" 1/4" 1.89 48 1.02 26 1.81 9/16"
141GM 6-6 3/8" 3/8" 2.48 63 1.34 34 2.18 11/16"
141GM 8-6 1/2" 3/8" 2.48 63 1.34 34 2.43 7/8"
141GM 8-8 1/2" 1/2" 2.99 76 1.65 42 2.52 7/8"
141GM 10-8 5/8" 1/2" 2.99 76 1.65 42 2.58 1"
141GM 10-10 5/8" 5/8" 3.35 85 1.85 47 2.58 1"
141GM 12-12 3/4" 3/4" 3.94 100 2.44 62 3.74 1-1/4"
141GM 16-16 1" 1" 4.80 122 3.03 77 4.32 1-1/2"
141GM 20-20 1-1/4" 1-1/4" 5.94 151 3.54 90 5.28 2"
