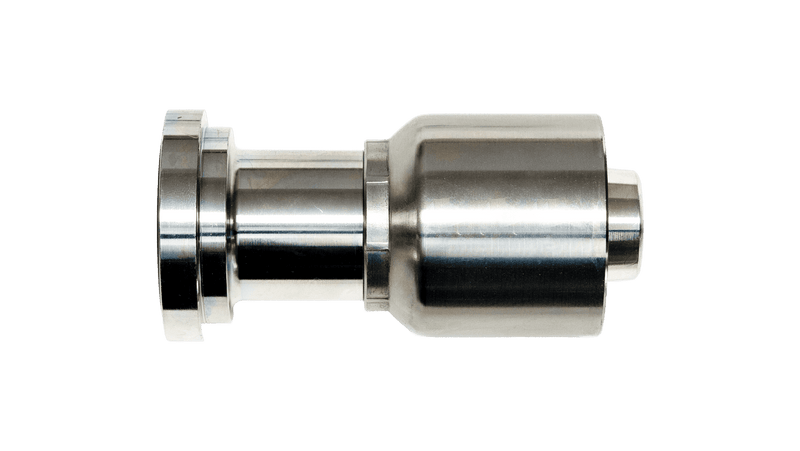

CODE 62 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | ||
|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | ||
| 16AGM-12-12 | 3/4" | 3/4" | 4.12 | 104.6 | 2.68 | 68 | 1-5/8" |
| 16AGM-16-12 | 1" | 3/4" | 3.1 | 78.7 | 1.66 | 42.2 | 1-7/8" |
| 16AGM-16-16 | 1" | 1" | 4.81 | 122.2 | 3.19 | 81 | 1-7/8" |
| 16AGM-20-16 | 1-1/4" | 1" | 3.61 | 91.7 | 1.99 | 50.5 | 2-1/8" |
| 16AGM-20-20 | 1-1/4" | 1-1/4" | 5.01 | 127.3 | 3.32 | 84.3 | 2-1/8" |
