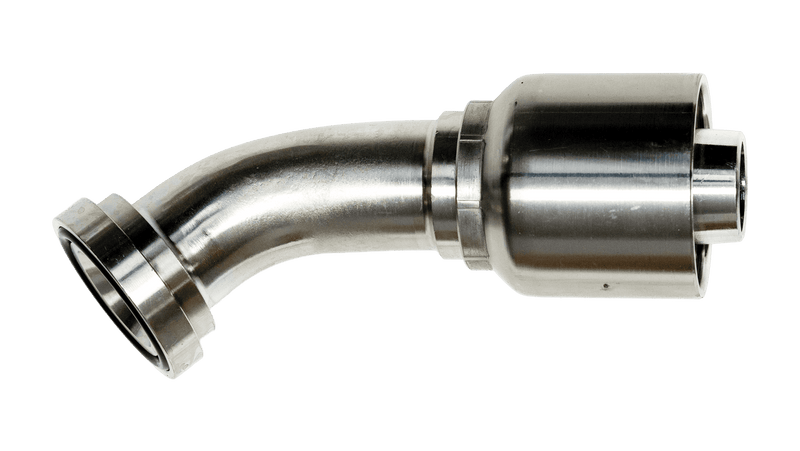

CODE 62 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 16FGM-12-12 | 3/4" | 3/4" | 3.82 | 60,5 | 2.38 | 60,5 | 1-5/8" | 1.02 |
| 16FGM-16-12 | 1" | 3/4" | 3.82 | 60,5 | 2.38 | 60,5 | 1-5/8" | 1.02 |
| 16FGM-16-16 | 1" | 1" | 4.66 | 118,4 | 3.04 | 77,2 | 1-7/8" | 1.26 |
| 16FGM-20-16 | 1-1/4" | 1" | 4.57 | 116,1 | 2.95 | 74,9 | 2-18" | 1.06 |
| 16FGM-20-20 | 1-1/4" | 1-1/4" | 6.38 | 162 | 3.98 | 101 | 2-18" | 1.06 |
