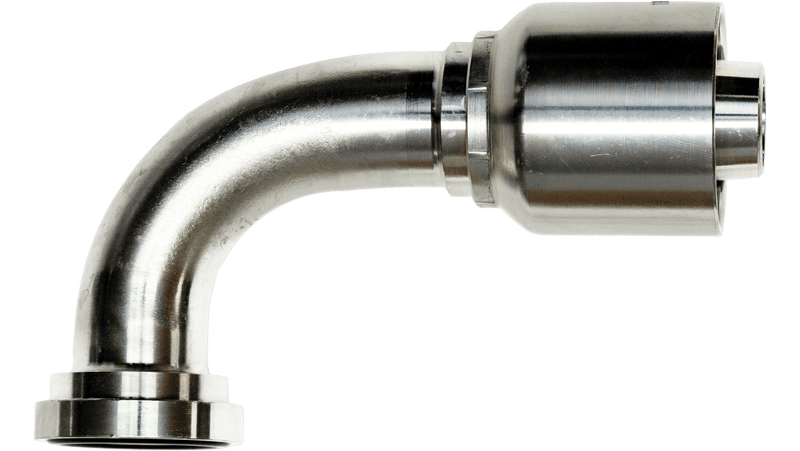

CODE 62 GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | ||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | ||
| 16NGM-12-12 | 3/4" | 3/4" | 3.51 | 89,2 | 2.07 | 52,6 | 1-5/8" | 2.28 |
| 16NGM-16-12 | 1" | 3/4" | 3.49 | 88,6 | 2.05 | 52,1 | 1-7/8" | 2.28 |
| 16NGM-16-16 | 1" | 1" | 4.28 | 108,7 | 2.66 | 67,6 | 1-7/8" | 2.76 |
| 16NGM-20-16 | 1-1/4" | 1" | 4.28 | 108,7 | 2.66 | 67,6 | 1-7/8" | 2.76 |
| 16NGM-20-20 | 1-1/4" | 1-1/4" | 5.09 | 129,3 | 3.4 | 86,4 | 2-1/8" | 3.54 |
