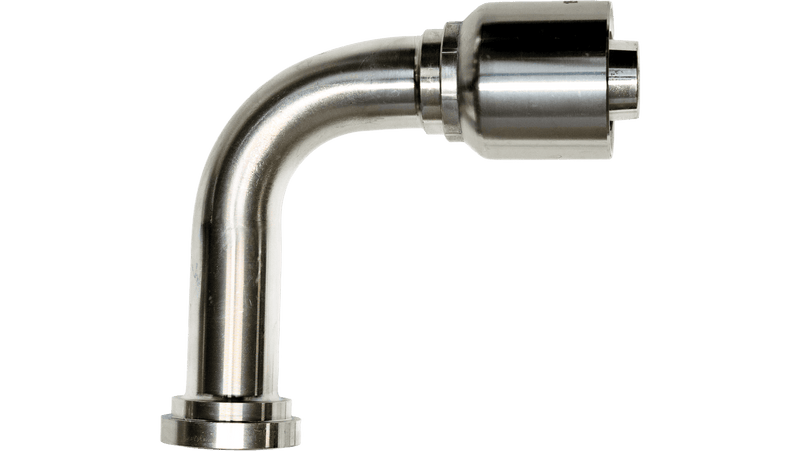

GM Series 189GM SAE Code 61 Flange Head 90° Elbow Long Drop

GM Series 189GM SAE Code 61 Flange Head 90° Elbow Long Drop

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

CODE 61 GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. FLANGE HOSE ID A B F E
MM INCH MM INCH MM INCH INCH
189GM-12-12 3/4" 3/4" 4.01 102 2.51 64 1-1/2 3.03
189GM-16-12 1" 3/4" 3.94 100 2.44 62 1-3/4 4.61
189GM-16-16 1" 1" 5.16 131 3.11 79 1-3/4 4.61
189GM-20-16 1-1/4" 1" 5.18 132 3.11 79 2 4.61
