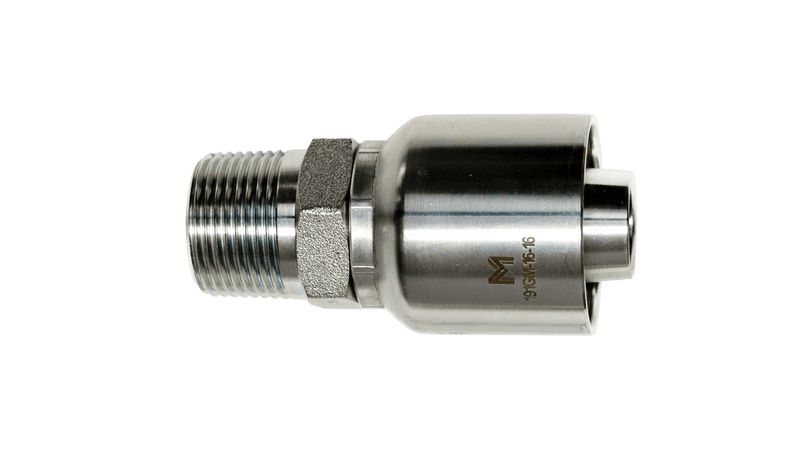

GM Series 191GM Male BSP Taper Rigid 60° Cone

GM Series 191GM Male BSP Taper Rigid 60° Cone

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

BSP GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

Part Number Thread HOSE ID A B H
INCH INCH MM INCH MM INCH
191GM 2-4 1/8" 1/4" 1.65 42 0.83 21 0.47
191GM 4-4 1/4" 1/4" 1.89 48 1.02 26 0.75
191GM 4-6 1/4" 3/8" 2.13 54 1.02 26 0.87
191GM 6-4 3/8" 1/4" 1.93 49 1.06 27 0.87
191GM 6-6 3/8" 3/8" 2.2 56 1.06 27 0.87
191GM 6-8 3/8" 1/2" 2.4 61 1.06 27 1.06
191GM 8-6 1/2" 3/8" 2.44 62 1.3 33 1.06
191GM 8-8 1/2" 1/2" 2.64 67 1.3 33 1.06
191GM 10-10 5/8" 5/8" 2.76 70 1.26 32 0.94
191GM 12-12 3/4" 3/4" 2.99 76 1.5 38 1.26
191GM 16-16 1" 1" 3.54 90 1.77 45 1.42
191GM 20-20 1-1/4" 1-1/4" 4.37 111 1.97 50 1.81
191GM 24-24 1-1/2" 1-1/2" 4.49 114 1.97 50 1.97
191GM 32-32 2" 2" 4.84 123 2.28 58 2.56
