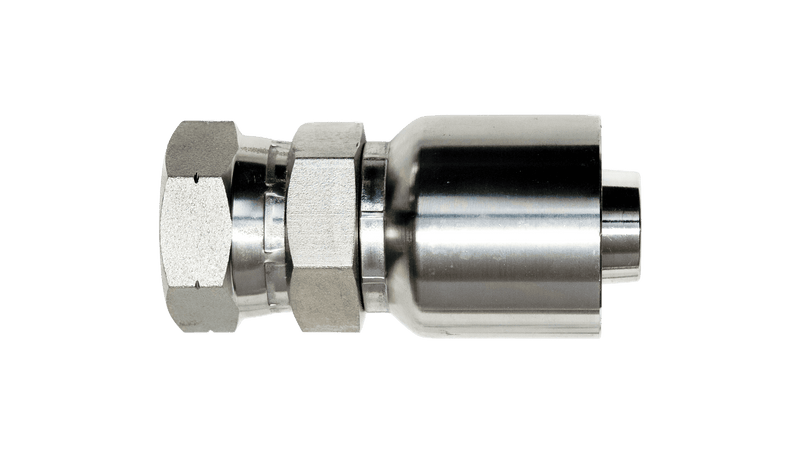

GM Series 192GM Female BSP Parallel Pipe Swivel 60° Cone

GM Series 192GM Female BSP Parallel Pipe Swivel 60° Cone

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

BSP GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B H W
INCH INCH MM INCH MM MM MM
192GM-2-4 1/8" 1/4" 1.97 50 1.10 28 19 19
192GM-4-4 1/4" 1/4" 1.97 50 1.10 28 19 19
192GM-4-6 1/4" 3/8" 2.24 57 1.1 28 22 19
192GM-6-4 3/8" 1/4" 2.05 52 1.18 30 22 22
192GM-6-6 3/8" 3/8" 2.56 65 1.18 30 22 22
192GM-6-8 3/8" 1/2" 2.56 65 1.18 30 27 22
192GM-8-6 1/2" 3/8" 2.48 63 1.38 35 27 27
192GM-8-8 1/2" 1/2" 2.72 69 1.38 35 27 27
192GM-10-10 5/8" 5/8" 2.99 76 1.5 38 27 27
192GM-12-8 3/4" 1/2" 3.03 77 1.65 42 32 36
192GM-12-12 3/4" 3/4" 3.24 82 1.73 44 32 36
192GM-16-16 1" 1" 3.62 92 1.85 47 36 41
192GM-20-20 1-1/4" 1-1/4" 4.53 115 2.13 54 46 50
192GM-24-24 1-1/2" 1-1/2" 4.96 126 2.44 62 56 56
192GM-32-32 2" 2" 5.16 131 2.6 66 61 61
