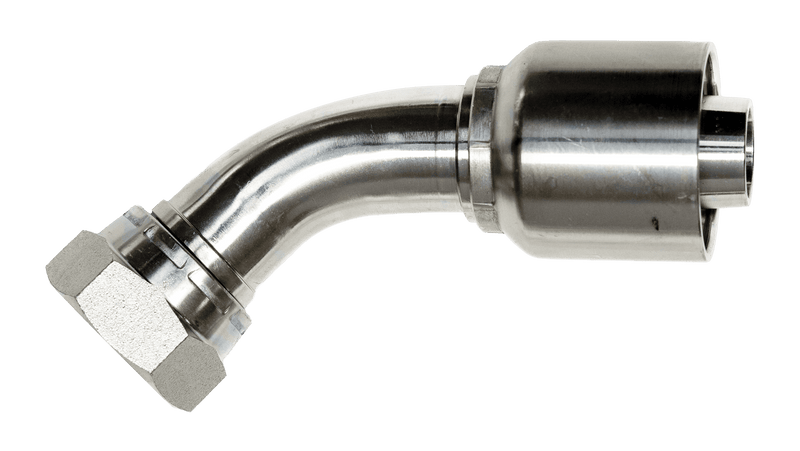

BSP GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | E | W | ||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1B1GM-4-4 | 1/4" | 1/4" | 2.28 | 58 | 1.42 | 36 | 0.67 | 19 |
| 1B1GM-6-6 | 3/8" | 3/8" | 2.80 | 71 | 1.65 | 42 | 0.79 | 22 |
| 1B1GM-8-8 | 1/2" | 1/2" | 3.35 | 85 | 2.01 | 51 | 0.94 | 27 |
| 1B1GM-10-10 | 5/8" | 5/8" | 3.74 | 95 | 2.24 | 57 | 1.06 | 30 |
| 1B1GM-12-12 | 3/4" | 3/4" | 4.25 | 108 | 2.76 | 70 | 1.22 | 32 |
| 1B1GM-16-16 | 1" | 1" | 5.12 | 130 | 3.35 | 85 | 1.34 | 41 |
| 1B1GM-20-20 | 1-1/14" | 1-1/14" | 6.30 | 160 | 3.90 | 99 | 1.58 | 50 |
