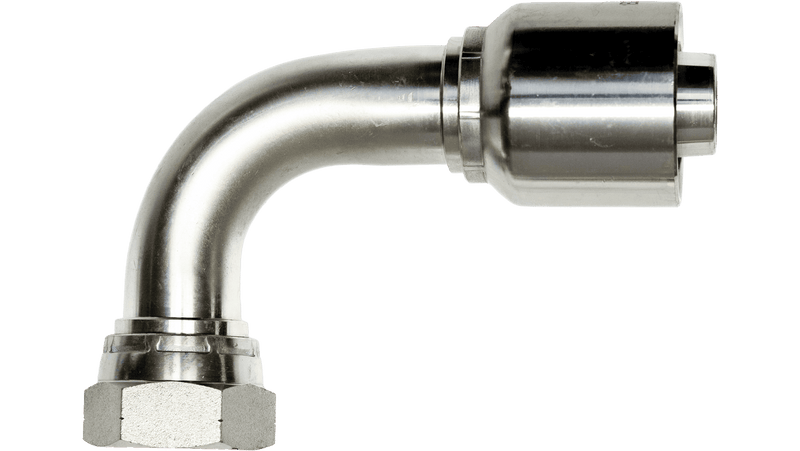

GM Series 1B2GM Female BSP Parallel Pipe Swivel 90° Elbow 60° Cone

GM Series 1B2GM Female BSP Parallel Pipe Swivel 90° Elbow 60° Cone

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

BSP GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B E W
INCH INCH MM INCH MM INCH INCH
1B2GM-4-4 1/4" 1/4" 1.93 49 1.06 27 1.26 19
1B2GM-6-4 3/8" 1/4" 1.89 48 1.02 26 1.33 22
1B2GM-6-6 3/8" 3/8" 2.44 62 1.30 33 1.54 22
1B2GM-8-6 1/2" 1/2" 2.44 62 1.30 33 1.61 27
1B2GM-8-8 1/2" 1/2" 2.95 75 1.61 41 1.89 27
1B2GM-10-10 5/8" 5/8" 3.35 85 1.85 47 2.13 30
1B2GM-12-12 3/4" 3/4" 3.86 98 2.36 60 2.52 32
1B2GM-16-16 1" 1" 4.76 121 2.99 76 2.91 41
1B2GM-20-20 1-1/4" 1-1/4" 5.94 151 3.54 90 3.43 50
1B2GM-24-24 1-1/2" 1-1/12" 6.1 155 3.74 95 3.42 55
