Skip to content

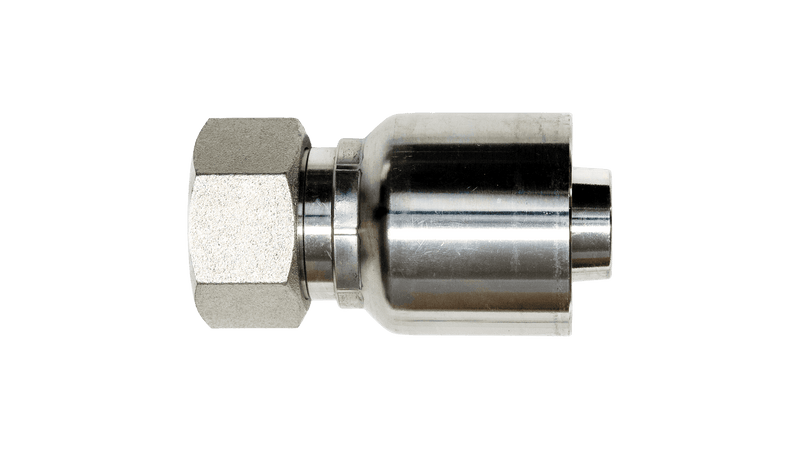

GM Series 1CAGM Female Metric L Swivel 24° Cone with O-Ring

GM Series 1CAGM Female Metric L Swivel 24° Cone with O-Ring

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

METRIC GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B C W
INCH INCH INCH MM INCH MM INCH INCH
1CAGM-6-4 6 M12X1.5 1/4" 1.73 44 0.88 22 -0.02 14
1CAGM-8-4 8 M12 X 1.5 1/4" 1.65 42 0.79 17 0.01 14
1CAGM-10-4 10 M16 X 1.5 1/4" 1.69 43 0.83 21 0.04 19
1CAGM-10-6 10 M16 X 1.5 3/8" 2.09 53 0.94 24 0.02 19
1CAGM-12-6 12 M18 X 1.5 3/8" 1.97 50 0.83 22 0.03 22
1CAGM-12-8 12 M18 X 1.5 1/2" 2.17 55 0.83 21 0.07 27
1CAGM-15-6 15 M22 X 1.5 3/8" 1.97 50 0.83 22 0.03 22
1CAGM-15-8 15 M22 X 1.5 1/2" 2.17 55 0.83 21 0.07 27
1CAGM-18-8 18 M26 X 1.5 1/2" 2.28 58 0.94 24 0.02 32
1CAGM-22-12 22 M30 X 2 3/4" 2.52 64 1.02 26 0.13 36
1CAGM-28-12 28 M36 X 2 3/4" 2.52 64 1.02 26 0.13 36
1CAGM-28-16 28 M36 X 2 1" 2.87 73 1.10 28 0.14 41
