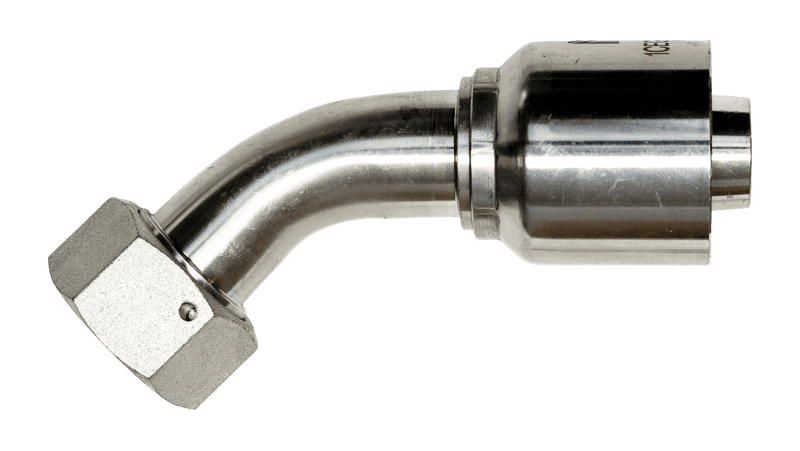

GM Series 1CEGM Female Metric L Swivel 45° Elbow 24° Cone with O-Ring

GM Series 1CEGM Female Metric L Swivel 45° Elbow 24° Cone with O-Ring

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

METRIC GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B E W
INCH INCH INCH MM INCH MM INCH INCH
1CEGM-6-4 6 M12X1.5 1/4" 2.68 68 1.77 45 0.75 14
1CEGM-8-4 8 M12 X 1.5 1/4" 2.32 59 1.46 37 0.75 17
1CEGM-10-4 10 M16 X 1.5 1/4" 2.68 68 1.77 45 0.75 14
1CEGM-10-6 10 M16 X 1.5 3/8" 2.95 75 1.81 46 0.91 23
1CEGM-12-6 12 M18 X 1.5 3/8" 2.91 74 1.77 45 0.87 22
1CEGM-15-8 15 M22 X 1.5 1/2" 3.50 89 2.17 55 1.06 27
1CEGM-18-6 18 M26 X 1.5 3/8" 2.91 74 1.77 45 0.87 22
1CEGM-18-8 18 M26 X 1.5 1/2" 3.50 89 2.17 55 1.06 27
1CEGM-18-10 18 m26x1.5 5/8" 3.5 89 1.93 49 0.91 32
1CEGM-22-12 22 M30 X 2 3/4" 4.45 113 2.95 75 1.38 36
1CEGM-28-16 28 M36 X 2 1" 4.92 125 3.35 85 1.34 41
