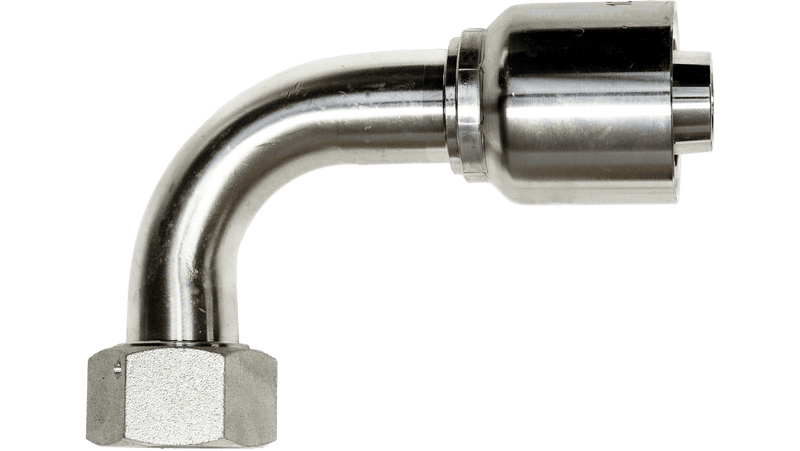

METRIC GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | E | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1CFGM-6-4 | 6 | M12X1.5 | 1/4" | 1.89 | 48 | 1.02 | 26 | 1.42 | 17 |
| 1CFGM-8-4 | 8 | M12 X 1.5 | 1/4" | 1.89 | 48 | 1.02 | 26 | 1.42 | 17 |
| 1CFGM-10-4 | 10 | M16 X 1.5 | 1/4" | 1.89 | 48 | 1.02 | 26 | 1.38 | 19 |
| 1CFGM-10-6 | 10 | M16 X 1.5 | 3/8" | 2.48 | 63 | 1.34 | 34 | 1.69 | 19 |
| 1CFGM-12-6 | 12 | M18 X 1.5 | 3/8" | 2.48 | 63 | 1.34 | 34 | 1.65 | 22 |
| 1CFGM-15-8 | 15 | M22 X 1.5 | 1/2" | 2.99 | 76 | 1.65 | 42 | 2.05 | 27 |
| 1CFGM-18-8 | 18 | M26 X 1.5 | 1/2" | 2.99 | 76 | 1.65 | 42 | 2.05 | 27 |
| 1CFGM-22-12 | 22 | M30 X 2 | 3/4" | 3.94 | 100 | 2.44 | 62 | 2.76 | 36 |
| 1CFGM-28-16 | 28 | M36 X 2 | 1" | 4.76 | 121 | 2.99 | 76 | 2.91 | 41 |
