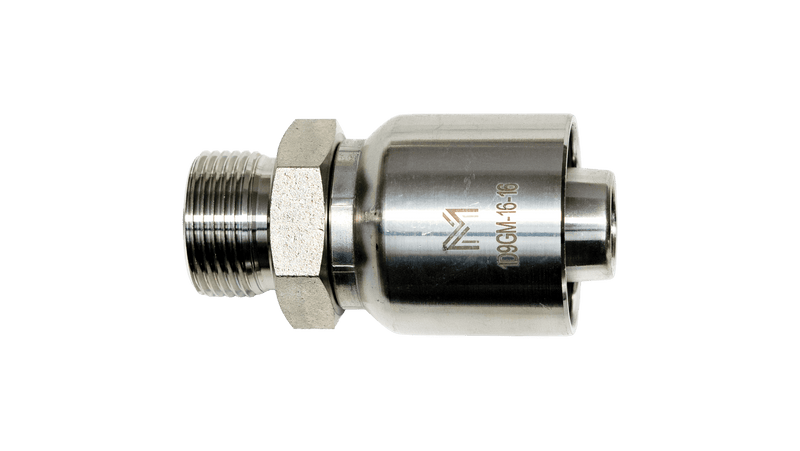

BSPP GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | H | ||
|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | MM | ||
| 1D9GM-4-4 | 1/4X19 | 1/4" | 1.77 | 45 | 0.91 | 23 | 19 |
| 1D9GM-6-6 | 3/8X19 | 3/8" | 2.13 | 54 | 1.22 | 31 | 22 |
| 1D9GM-8-6 | 1/2X14 | 3/8" | 2.36 | 60 | 1.22 | 31 | 27 |
| 1D9GM-8-8 | 1/2X14 | 1/2" | 2.44 | 62 | 1.1 | 28 | 27 |
| 1D9GM-12-12 | 3/4X14 | 3/4" | 2.76 | 70 | 1.18 | 30 | 32 |
| 1D9GM-16-16 | 1X11 | 1" | 3.23 | 82 | 1.38 | 35 | 41 |
