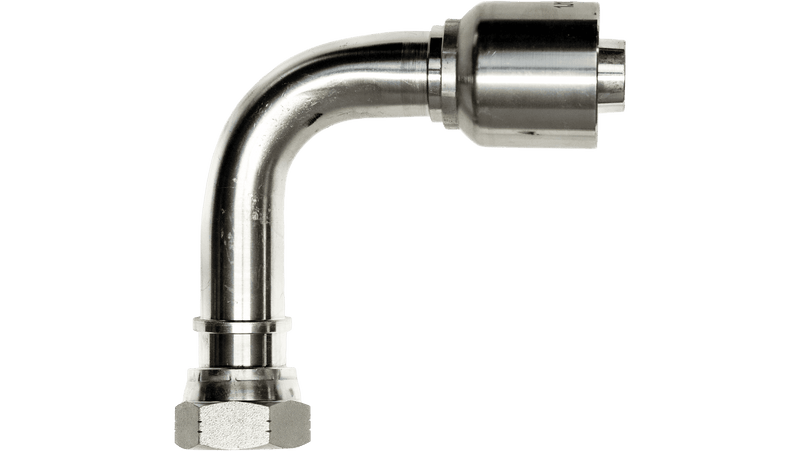

ORFS GM SERIES
USE WITH: R1S, R2S, R2SC, R2HT, R4K
| PART NO. | THREAD | HOSE ID | A | B | E | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1J1GM-4-4 | 1/4" | 9/16 X 18 | 1/4" | 1.89 | 48 | 1.02 | 26 | 1.81 | 11/16 |
| 1J1GM-6-6 | 3/8" | 11/16 X 16 | 3/8" | 2.44 | 62 | 1.30 | 33 | 2.13 | 13/16 |
| 1J1GM-8-8 | 1/2" | 13/16 X 16 | 1/2" | 2.99 | 76 | 1.65 | 42 | 2.52 | 15/16 |
| 1J1GM-10-10 | 5/8" | 1 X 14 | 5/8" | 3.35 | 85 | 1.85 | 47 | 2.76 | 1-1/8 |
| 1J1GM-12-12 | 3/4" | 1-3/16" | 3/4" | 3.90 | 99 | 2.40 | 61 | 3.78 | 1-3/8 |
| 1J1GM-16-16 | 1-7/16" | 1-7/16 X 12 | 1" | 4.76 | 121 | 2.99 | 76 | 4.49 | 1-5/8 |
| 1J1GM-20-20 | 1-11/16" | 1-11/16 X 12 | 1-1/4" | 5.94 | 151 | 3.54 | 90 | 5.09 | 1-7/8 |
