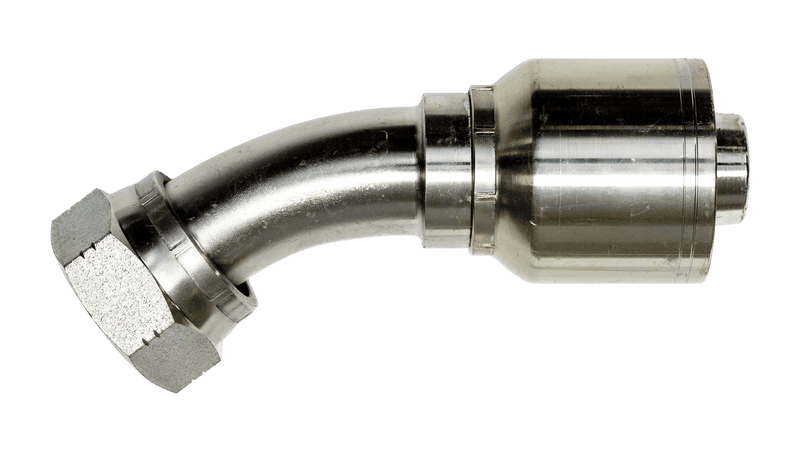

GM Series 1J7GM Female Swivel ORFS Flat Face 45° Elbow

GM Series 1J7GM Female Swivel ORFS Flat Face 45° Elbow

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

ORFS GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B E W
INCH INCH INCH MM INCH MM INCH INCH
1J7GM-4-4 1/4" 9/16 X 18 1/4" 1.97 50 1.10 28 0.51 11/16
1J7GM-6-6 3/8" 11/16 X 16 3/8" 2.40 61 1.26 32 0.55 13/16
1J7GM-8-8 1/2" 13/16 X 16 1/2" 2.83 72 1.50 38 0.63 15/16
1j7GM-10-8 5/8" 1 X 14 1/2" 2.99 76 1.65 42 0.75 1-1/8
1J7GM-10-10 5/8" 1 X 14 5/8" 3.39 86 1.89 48 0.83 1-1/8
1J7GM-10-12 5/8" 1 X 14 3/4" 3.50 89 2.01 51 0.83 1-1/8
1J7GM-12-10 3/4" 1-3/16 X 12 5/8" 3.43 87 1.93 49 0.83 1-3/8
1J7GM-12-12 3/4" 1-3/16 X 12 3/4" 3.86 98 2.36 60 0.98 1-3/8
1J7GM-16-16 1-7/16" 1-7/16" X 12 1" 4.65 118 2.87 73 1.10 1-5/8
1J7GM-20-20 1-11/16" 1-11/16 X 12 1-1/4" 5.75 146 3.35 85 1.26 1-7/8
1J7GM-24-24 2" 2 X 12 1-1/2" 6.73 171 4.21 107 1.50 2-1/4
