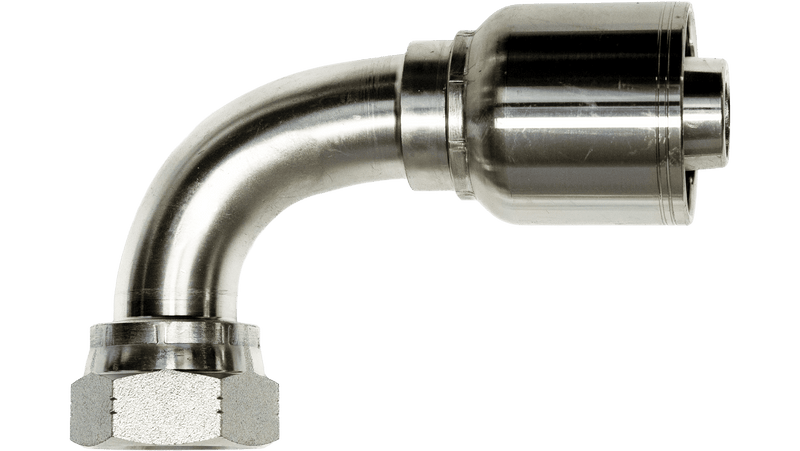

GM Series 1J9GM Female Swivel ORFS Flat Face 90° Elbow

GM Series 1J9GM Female Swivel ORFS Flat Face 90° Elbow

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

ORFS GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B E W
INCH INCH INCH MM INCH MM INCH INCH
1J9MH-4-4 1/4" 9/16 X 18 1/4" 1.69 43 0.83 21 0.94 11/16
1J9MH-6-4 3/8" 11/16 X 16 1/4" 1.69 43 0.83 21 1.14 13/16
1J9GM-6-6 3/8" 11/16 X 16 3/8" 2.13 54 0.98 25 1.06 13/16
1J9GM-8-6 1/2" 13/16 X 16 3/8" 2.13 54 0.98 25 1.22 15/16
1J9GM-8-8 1/2" 13/16 X 16 1/2" 2.60 66 1.26 32 1.30 15/16
1J9GM-10-8 5/8" 1 X 14 1/2" 2.64 67 1.30 33 1.42 1-1/8
1J9GM-10-10 5/8" 1 X 14 5/8" 3.07 78 1.57 40 1.65 1-1/8
1J9GM-10-12 5/8" 1 X 14 5/8" 3.19 81 1.69 43 1.65 1-1/8
1J9HM-12-10 3/4" 1-3/16" 5/8" 3.07 78 1.57 40 1.69 1-3/8
1J9GM-12-12 3/4" 1-3/16" 3/4" 3.58 91 2.09 53 2.09 1-3/8
1J9GM-16-16 1-7/16" 1-7/16 X 12 1" 4.41 112 2.64 67 2.44 1-5/8
1J9GM-20-20 1-11/16" 1-11/16 X 12 1-1/4" 5.43 138 3.03 77 2.76 1-7/8
1J9GM-24-24 2 2 X 12 1-1/2" 6.73 171 4.21 107 3.66 2-1/4
