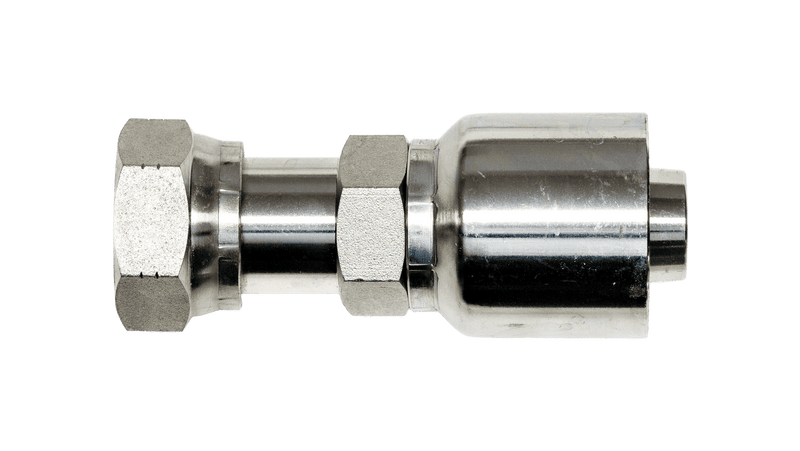

GM Series 1JSGM Female Swivel ORFS Flat Face

GM Series 1JSGM Female Swivel ORFS Flat Face

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Choose a Part Number
Request a quote

ORFS GM SERIES

USE WITH: R1S, R2S, R2SC, R2HT, R4K

103GM MALE JIC 37, hydraulic hose fittings

PART NO. THREAD HOSE ID A B H W
INCH INCH INCH MM INCH MM INCH INCH
1JSGM-4-4 1/4" 9/16 X 18 1/4" 2.09 53 1.22 31 9/16 11/16
1JSGM-6-4 3/8" 11/16 X 16 1/4" 2.13 54 1.26 27 9/16 13/16
1JSGM-6-6 3/8" 11/16 X 16 3/8" 2.32 59 1.18 30 11/16 13/16
1JSGM-8-6 1/2" 13/16 X 16 3/8" 2.52 64 1.38 35 11/16 15/16
1JSGM-8-8 1/2" 13/16 X 16 1/2" 2.64 67 1.30 33 13/16 15/16
1JSGM-10-8 5/8" 1 X 14 1/2" 2.91 74 1.57 40 13/16 1-1/8
1JSGM-10-10 5/8" 1 X 14 5/8" 3.15 80 1.65 42 15/16 1-1/8
1JSGM-12-10 3/4" 1-3/16" 5/8" 3.15 80 1.65 42 1-1/8 1-3/8
1JSGM-12-12 3/4" 1-3/16" 3/4" 3.31 84 1.81 46 1-1/8 1-3/8
1JSGM-16-12 1 1-7/16 X 12 3/4" 3.39 86 1.89 48 1-3/8 1-5/8
1JSGM-16-16 1 1-7/16 X 12 1" 3.66 93 1.89 48 1-3/8 1-5/8
1JSGM-20-20 1-1/4 1-11/16 X 12 1-1/4" 4.37 111 1.97 50 1-3/4 1-7/8
1JSGM-24-20 1-1/2 2 X 12 1-1/4" 4.49 114 2.09 53 1-3/4 2-1/4
