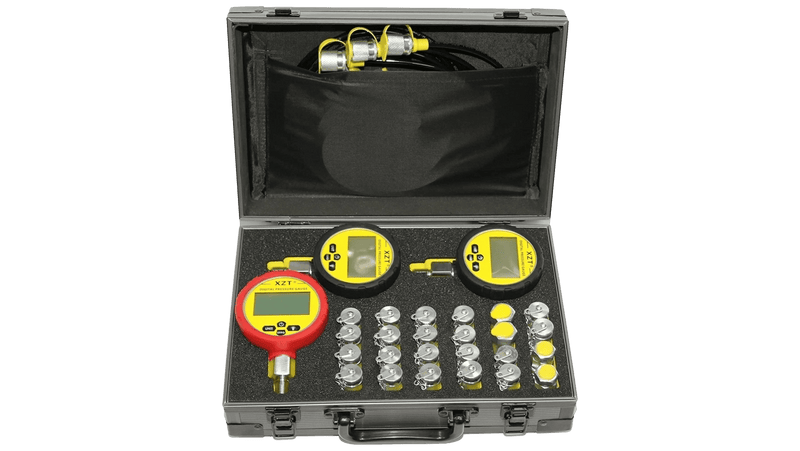

MH-XZTK-70P
| Pressure Guage | QTY | |
|---|---|---|
| Digital Pressure gaugeļ¼Ć80mmļ½700BAR/10000PSI/70MPa- BSP with Protector |
2 | |
| Digital Pressure gaugeļ¼Ć80mmļ½160BAR/2300PSI/16MPa- BSP with Protector |
2 | |
| Test Hose Assembly | QTY | |
| Test hoseļ¼Lengthļ¼1.5m/5FT | 2 | |
| Test hoseļ¼Lengthļ¼3m/10FT | 1 | |
| Test Coupling | ||
| NO. | Description | QTY |
| 1 | Test couplingļ¼G1/8 | 2 |
| 2 | Test couplingļ¼G1/4 | 2 |
| 3 | Test couplingļ¼G3/8 | 1 |
| 4 | Test couplingļ¼M8*1 | 1 |
| 5 | Test couplingļ¼M10*1 | 1 |
| 6 | Test couplingļ¼M10*1.25 | 1 |
| 7 | Test couplingļ¼M12*1.5 | 1 |
| 8 | Test couplingļ¼M14*1.5 | 1 |
| 9 | Test couplingļ¼M16*1.5 | 1 |
| 10 | Test couplingļ¼UNF5/16-20 | 1 |
| 11 | Test couplingļ¼UNF7/16-20 | 1 |
| 12 | Test couplingļ¼UNF1/2-20 | 1 |
| 13 | Test couplingļ¼UNF9/16-18 | 1 |
| 14 | Test couplingļ¼R1/8 | 1 |
| 15 | Test couplingļ¼R1/4 | 1 |
| 16 | Test couplingļ¼NPT1/8 | 1 |
| 17 | Test couplingļ¼NPT1/4 | 1 |
| 18 | Test couplingļ¼JIC37-UNF7/16 | 1 |
| Quick Release Coupling | QTY | |
| B Quick connector for Catpelier/CASE/John Deere-(BSP1/8 F) | 2 | |
| C Quick connector for Komatsu/HITACHI-(BSP1/4 F) | 2 | |
