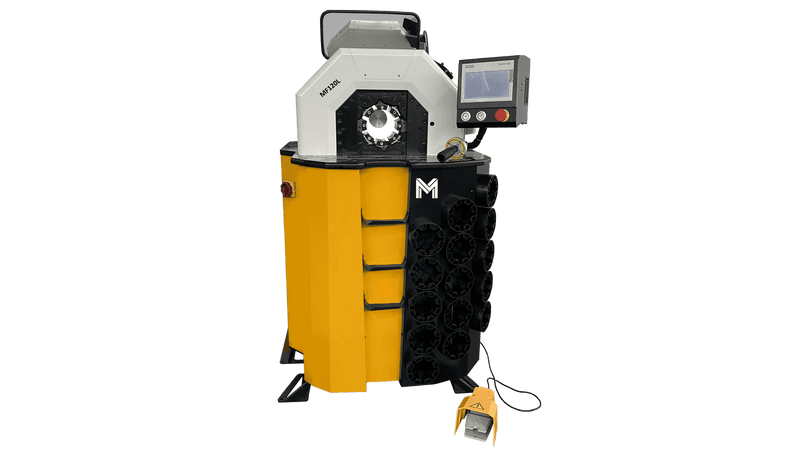

Masterhose MF-120L Hydraulic Hose Crimping Machine

Name: Masterhose MF-120L Hydraulic Hose Crimping Machine
Brand: Masterhose
Availability: InStock

Availability:

in stock, ready to be shipped

Suitable for small batch production, high efficiency, and high stability. Up to 2-inch (R13) or 3-inch 2 sp hose. Save operator's strength by compact ergonomic design make.

CNC System Features

Setup Max opening
Correction / Offset
Pressure maintaining time delay function
Speed change
Quality report
Pressure control
Step crimping
Save crimping data
Counting
Setup special die

Control

Semi-automatic
Automatic
CNC

Standard Features

Quick-change tool
Mirror
Electric backstop device
Die racks
Foot pedal **
(** with automatic continuous crimping function)

MF-120L

MF-P16HP

TECHNICAL DATA		Dies
Max crimping dia (mm)	118	DieSetNo	Crimping range	ID(mm)	L(mm)
Max crimping dia (inches)	4.65	P20/06*	6.0 - 8.0	6	55
Max crimping force (kN)	2450	P20/08*	8.0 - 10.0	8	55
Max crimping force (tonnage)	245	P20/10*	10.0 - 12.0	10	55
Cycle time 10mm (s) Tri/Mono	1.8	P20/12*	12.0 - 14.0	12	55
Hose size ID (inches)	2"(R13)	P20/14	14.0 - 16.0	14	55
Dies set series	P20 & YB120L	P20/16	16.0 - 19.0	16	55
Max opening (mm)	+52	P20/19	19.0 - 23.0	19	55
Max opening without dies (mm)	170	P20/23	23.0 - 27.0	23	55
Master die D/L (mm)	118/97	P20/27	27.0 - 31.0	27	70
Master die D/L (inches)	4.65/3.82	P20/31	31.0 - 36.0	31	70
Motor Power (kW/HP)	4/5.44	P20/36	36.0 - 41.0	36	75
Oil tank volume (L)	70	P20/41	41.0 - 47.0	41	75
Motor Voltage (V): Tri	200/220/380/440	P20/47	47.0 - 52.0	47	85
		P120L/52	52.0 - 60.0	52	100
		P120L/57	57.0 - 63.0	57	100
DIMENSIONS (L x W x H)		P120L/63	63.0 - 69.0	63	115
Machine (mm)	1100x830x1400	P120L/69	69.0 - 74.0	69	115
Machine (inch)	43.3x32.7x63.0	P120L/74*	74.0 - 79.0	74	115
Package (mm)	1025x1025x1740	P120L/79*	79.0 - 84.0	79	115
Package (inch)	40.4x40.4x48.5	P120L/84*	84.0 - 92.0	84	115
WEIGHT (KG)		P120L/92*	92.0 - 100.0	92	115
Net weight	790	P120L/100*	100.0	100	115
Gross weight	840	*: Non standard die
