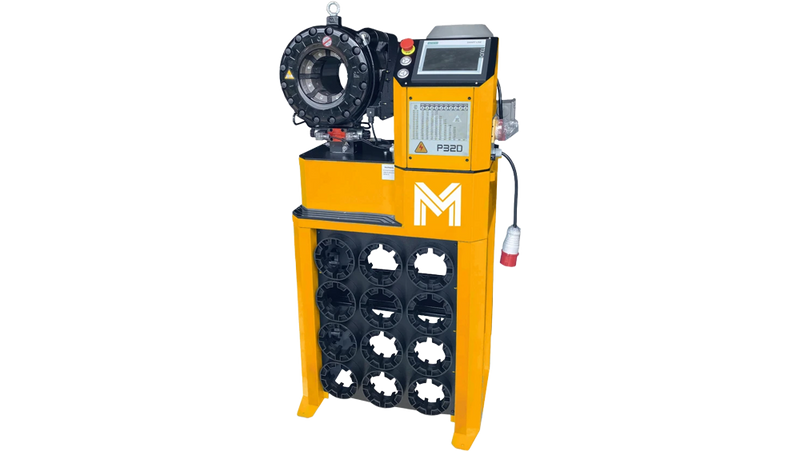

Masterhose MF-P32D Hydraulic Hose Crimping Machine

Masterhose MF-P32D Hydraulic Hose Crimping Machine

Availability:
in stock, ready to be shipped

MF-P32D hose-crimping machine has been designed to crimp up to 2" diameter 4-sprial hoses. And for workshop use. It is fast and easy to use. Controlled by the CNC system.

CNC System Features

  • Setup Max opening
  • Correction / Offset
  • Pressure maintaining time delay function
  • Speed change
  • Quality report
  • Pressure control
  • Step crimping
  • Save crimping data
  • Counting
  • Setup special die

Control

  • Semi-automatic
  • Automatic
  • CNC

Standard Features

  • Quick-change tool
  • Die racks
  • Foot pedal **
    (** with automatic continuous crimping function)

Request a quote

MF-P32D

MF-P32DMF-P32D

TECHNICAL DATA P32Dies
Max crimping dia (mm) 10-87 DieSetNo Crimping range ID(mm) L(mm)
Max crimping dia (inches) 0.39-3.42 P32/06* 6.0 - 8.0 6 55
Max crimping force (kN) 2000 P32/08* 8.0 - 10.0 8 55
Max crimping force (tonnage) 200 P32/10* 10.0 - 12.0 10 55
Cycle time 10mm (s) Tri/Mono 3.3/5.5 P32/12* 12.0 - 14.0 12 55
Hose size ID (inches) 2"(4SH) P32/14 14.0 - 16.0 14 55
Dies set series P32 P32/16 16.0 - 19.0 16 55
Max opening (mm) +33 P32/19 19.0 - 22.0 19 55
Max opening without dies (mm) 132 P32/22 22.0 - 26.0 22 70
Master die D/L (mm) 99/80 P32/26 26.0 - 30.0 26 70
Master die D/L (inches) 3.90/3.15 P32/30 30.0 - 34.0 30 70
Motor Tri/Mono (kW/HP) 3.7/5 4/5.3 P32/34 34.0 - 39.0 34 75
Oil tank volume (L) 42 P32/39 39.0 - 45.0 39 75
Crimping /hour 700/850 P32/45 45.0 - 51.0 45 90
Motor Voltage (V): Tri 200/220/380/440 P32/51 51.0 - 57.0 51 90
Motor Voltage (V): Mono 220/230/240 P32/57 57.0 - 63.0 57 100
DIMENSIONS (L x W x H) P32/63 63.0 - 69.0 63 100
Machine (mm) 650x470x1400 P32/69 69.0 - 75.0 69 100
Machine (inch) 25.6x18.5x55.1 P32/74* 74.0 - 80.0 74 100
Package (mm) 880x880x890 P32/78* 78.0 - 87.0 78 100
Package (inch) 34.6x34.6x35 *: Non standard die
WEIGHT (KG)
Net weight 305
Gross weight 335
