| PART # | ID | OD | Max WP | Min BP | BR | Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | Bar | PSI | Bar | PSI | mm | Kg | |
| R2HTA-20 | 1.1/14" | 31.8 | 47.5 | 155 | 2250 | 775 | 11250 | 420 | 2.09 |
| R2HTA-24 | 1.1/12" | 38.1 | 54.6 | 115 | 1650 | 568 | 8250 | 500 | 2.42 |
| R2HTA-32 | 2" | 50.8 | 67.4 | 105 | 1500 | 517 | 7500 | 630 | 3.21 |

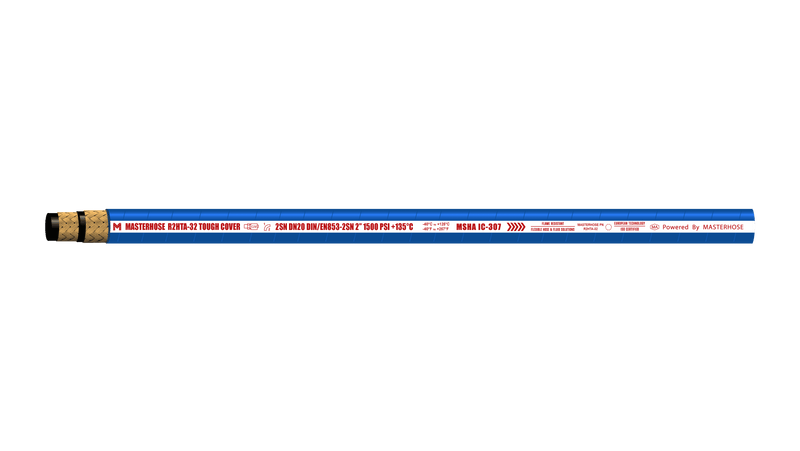

Masterhose R2HTA EN853-2SN High Temp Air Hose
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
| Application | High-pressure service with Petroleum-based hydraulic fluids and oils, waterglycol, oil grease and lubricants. For air applications above 100psi, outer cover should be perforated |
| Reinforcement | Two braid of high tensile steel wire. |
| Safety Factor | 5:1 |
| Cover | Blue Wrapped - Smooth FLAME-RESISTANT TOUGH COVER oil, temperature and weather resistant with 30% more abrasion resistance than standard cover. |
| Inner tube | Black oil-resistant synthetic rubber |
| Temperature range | -40°C to 150°C |
| Colour | Blue - White Layline |
| Hose Fittings | GM Series |
| Additional Info | Exceeds SAE DIN EN853, MSHA IC-307 Tested Impulse Cycles: 1,000,000 |
