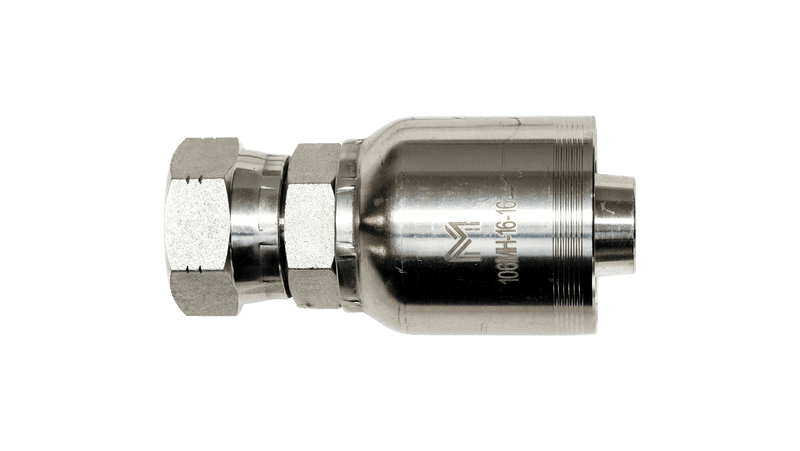

JIC MH SERIES
USE WITH: R6K
| PART NO. | THREAD | HOSE ID | A | B | H | W | ||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 106MH-12-12 | 3/4" | 1-1/16 X 12 | 3.74 | 95 | 1.85 | 47 | 1-1/8 | 1-1/4 |
| 106MH-16-16 | 1" | 1-5/16 X 12 | 4.03 | 102 | 2.01 | 51 | 1-3/8 | 1-1/2 |
| 106MH-20-20 | 1-1/4" | 1-5/8 X 12 | 4.80 | 122 | 2.17 | 55 | 1-3/4 | 2 |
| 106MH-24-24 | 1-1/2" | 1-7/8 X 12 | 4.96 | 126 | 2.70 | 68.5 | 2 | 2-1/4 |
| 106MH-32-32 | 2" | 2-1/2 X 12 | 5.83 | 148 | 3.03 | 77 | 2-1/2 | 2-7/8 |
