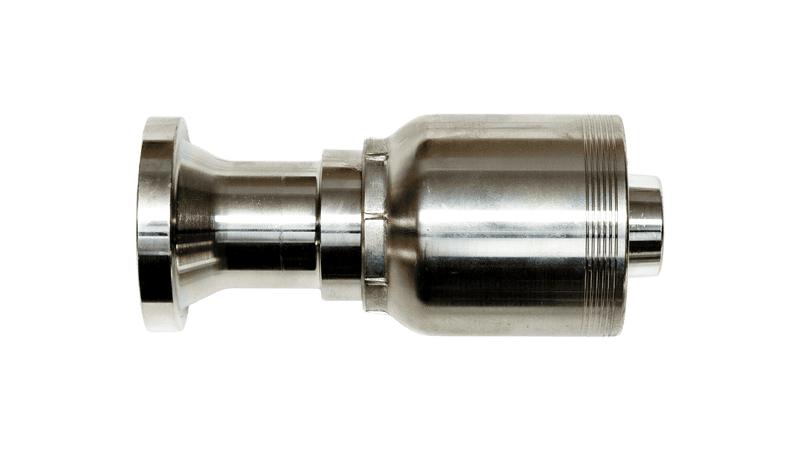

CODE 61 MH SERIES
USE WITH: R6K
| PART NO. | FLANGE | HOSE ID | A | B | F | ||
|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | ||
| 115MH-12-12 | 3/4" | 3/4" | 4.02 | 102 | 2.13 | 54 | 1-1/2 |
| 115MH-16-12 | 1" | 3/4" | 3.31 | 84 | 1.38 | 35 | 1-3/4 |
| 115MH-16-16 | 1" | 1" | 4.57 | 116 | 2.56 | 65 | 1-3/4 |
| 115MH-20-16 | 1-1/4" | 1" | 4.09 | 104 | 2.09 | 53 | 2 |
| 115MH-20-20 | 1-1/4" | 1-1/4" | 5.55 | 141 | 2.95 | 75 | 2 |
| 115MH-24-20 | 1-1/2" | 1-1/4" | 5.31 | 135 | 2.72 | 69 | 2-3/8 |
| 115MH-24-24 | 1-1/2" | 1-1/2" | 5.39 | 137 | 2.91 | 74 | 2-3/8 |
| 115MH-32-24 | 2" | 1-1/2" | 5.98 | 152 | 3.50 | 89 | 2-7/8 |
| 115MH-32-32 | 2" | 2" | 6.30 | 160 | 3.50 | 89 | 2-13/16 |
