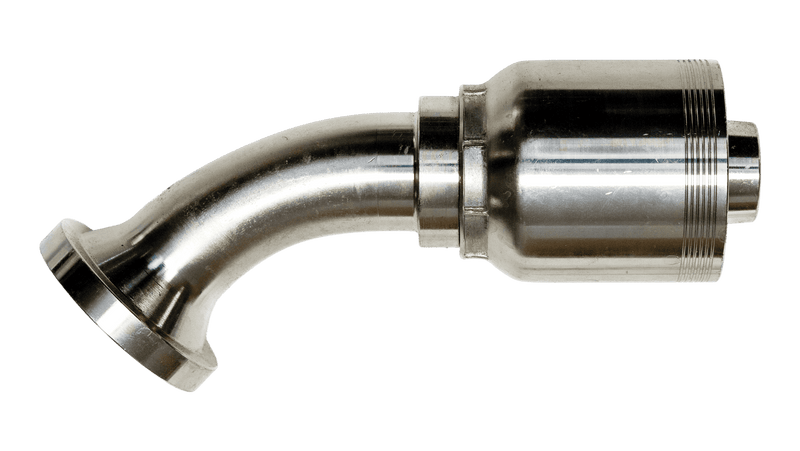

CODE 61 MH SERIES
USE WITH: R6K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | |||
|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | M | ||
| 117MH-12-12 | 3/4" | 3/4" | 4.76 | 121 | 2.87 | 73 | 1-1/2 | 1.10 | 28 |
| 117MH-16-12 | 1" | 3/4" | 4.84 | 123 | 2.91 | 74 | 1-3/4 | 1.1 | 28 |
| 117MH-16-16 | 1" | 1" | 5.43 | 138 | 3.43 | 87 | 1-3/4 | 1.22 | 31 |
| 117MH-20-16 | 1-1/4" | 1" | 5.47 | 139 | 3.46 | 88 | 2 | 1.22 | 31 |
| 117MH-20-20 | 1-1/4" | 1-1/4" | 6.61 | 168 | 4.02 | 102 | 2 | 1.38 | 35 |
| 117MH-24-20 | 1-1/2" | 1-1/4" | 6.69 | 170 | 4.09 | 104 | 2-3/8 | 1.42 | 36 |
| 117MH-24-24 | 1-1/2" | 1-1/2" | 7.05 | 179 | 4.57 | 116 | 2-3/8 | 1.57 | 40 |
| 117MH-32-24 | 2" | 1-1/2" | 7.09 | 180 | 4.61 | 117 | 2-13/16 | 1.61 | 41 |
| 117MH-32-32 | 2" | 2" | 8.46 | 215 | 5.67 | 144 | 2-13/16 | 1.89 | 48 |
