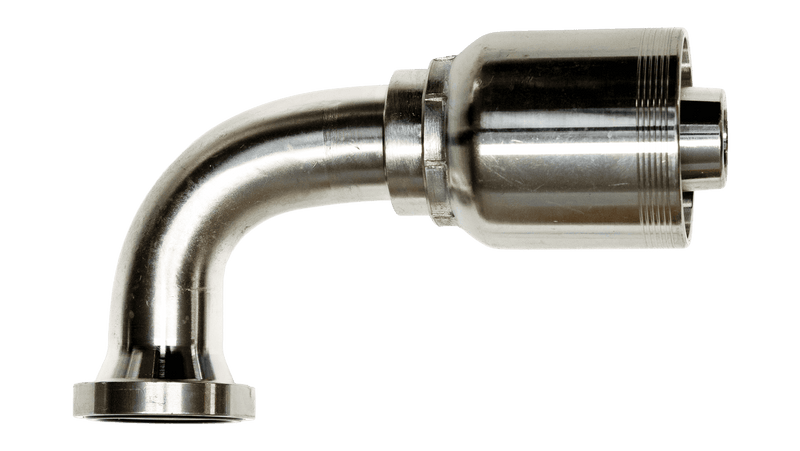

CODE 61 MH SERIES
USE WITH: R6K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | |||
|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | M | ||
| 119MH-12-12 | 3/4" | 3/4" | 4.61 | 117 | 2.64 | 67 | 1-1/2 | 2.40 | 61 |
| 119MH-16-12 | 1" | 3/4" | 4.49 | 114 | 2.56 | 65 | 1-3/4 | 2.4 | 61 |
| 119MH-16-16 | 1" | 1" | 5.24 | 133 | 3.23 | 82 | 1-3/4 | 2.72 | 69 |
| 119MH-20-16 | 1-1/4" | 1" | 5.24 | 133 | 3.23 | 82 | 2 | 2.76 | 70 |
| 119MH-20-20 | 1-1/4" | 1-1/4" | 6.46 | 164 | 3.86 | 98 | 2 | 3.15 | 80 |
| 119MH-24-20 | 1-1/2" | 1-1/4" | 6.50 | 165 | 3.90 | 99 | 2-3/8 | 3.23 | 82 |
| 119MH-24-24 | 1-1/2" | 1-1/2" | 7.01 | 178 | 4.53 | 115 | 2-3/8 | 3.74 | 95 |
| 119MH-32-24 | 2" | 1-1/2" | 7.01 | 178 | 4.53 | 115 | 2-13/16 | 3.74 | 95 |
| 119MH-32-32 | 2" | 2" | 8.50 | 216 | 5.71 | 145 | 2-13/16 | 4.57 | 116 |
