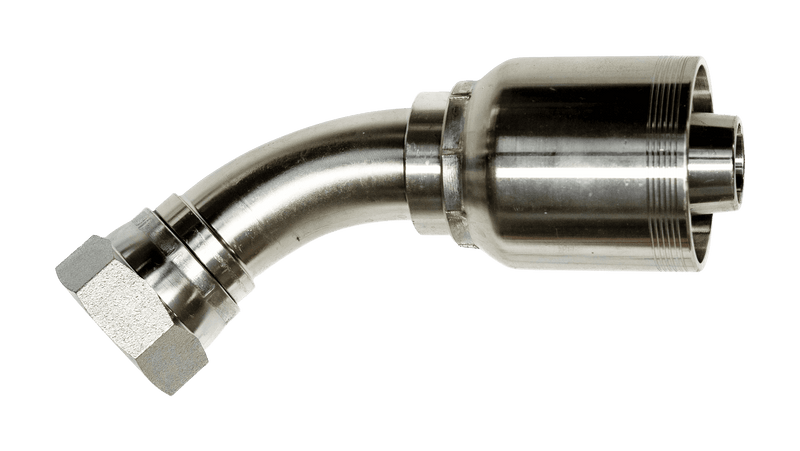

JIC MH SERIES
USE WITH: R6K
| PART NO. | THREAD | HOSE ID | A | B | E | W | ||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 137MH-12-12 | 3/4" | 3/4" | 4.37 | 111 | 2.44 | 62 | 0.94 | 1-1/4 |
| 137MH-16-16 | 1" | 1" | 5.00 | 127 | 2.99 | 76 | 1.1 | 1-1/2 |
| 137MH-20-20 | 1-1/4" | 1-1/4" | 6.02 | 153 | 3.43 | 87 | 1.3 | 2 |
| 137MH-24-24 | 1-1/2" | 1-1/2" | 6.93 | 176 | 4.45 | 113 | 1.65 | 2-1/4 |
| 137MH-32-32 | 2" | 2" | 8.66 | 220 | 5.63 | 143 | 1.96 | 2-7/8 |
