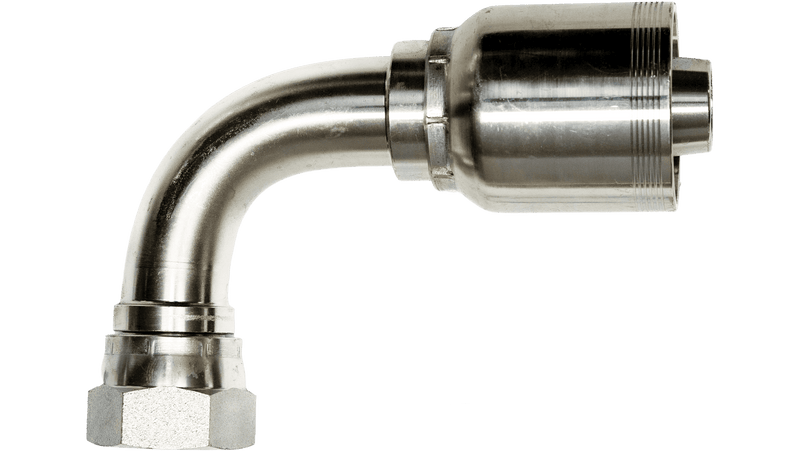

JIC MH SERIES
USE WITH: R6K
| PART NO. | THREAD | HOSE ID | A | B | E | W | ||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 139MH-12-12 | 3/4" | 3/4" | 4.06 | 103 | 2.17 | 55 | 2.09 | 1-1/2 |
| 139MH-16-16 | 1" | 1" | 4.76 | 121 | 2.76 | 70 | 2.44 | 1-1/2 |
| 139MH-20-20 | 1-1/4" | 1-1/4" | 5.71 | 145 | 3.07 | 78 | 2.80 | 2 |
| 139MH-24-24 | 1-1/2" | 1-1/2" | 6.81 | 173 | 4.33 | 110 | 3.86 | 2-1/4 |
| 139MH-32-32 | 2" | 2" | 8.39 | 213 | 5.59 | 142 | 4.69 | 2-7/8 |
