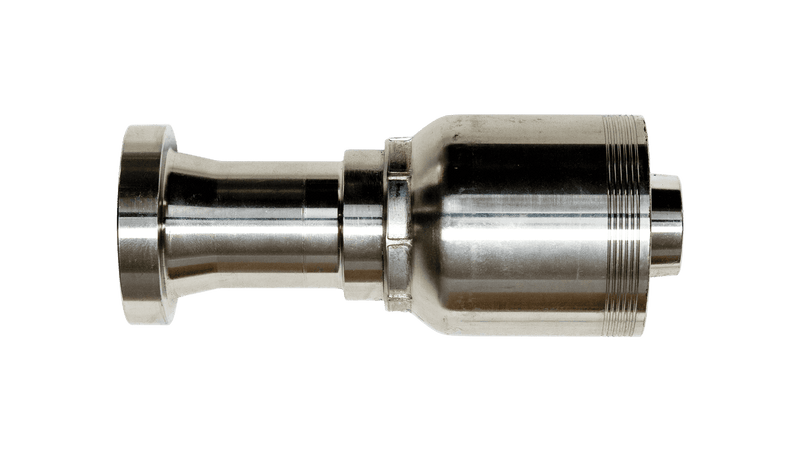

CODE 62 MH SERIES
USE WITH: R6K
| PART NO. | FLANGE | HOSE ID | A | B | F | ||
|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | ||
| 16AMH-12-12 | 3/4" | 3/4" | 4.65 | 118 | 2.68 | 68 | 1-5/8 |
| 16AMH-16-12 | 1" | 3/4" | 4.45 | 113 | 2.48 | 63 | 1-7/8 |
| 16AMH-16-16 | 1" | 1" | 5.20 | 132 | 3.19 | 81 | 1-7/8 |
| 16AMH-16-20 | 1" | 1-1/4" | 5.91 | 150 | 3.31 | 84 | 1-7/8 |
| 16AMH-20-16 | 1-1/4" | 1" | 4.80 | 122 | 2.80 | 71 | 2-1/8 |
| 16AMH-20-20 | 1-1/4" | 1-1/4" | 5.71 | 145 | 3.11 | 79 | 2-1/8 |
| 16AMH-24-20 | 1-1/2" | 1-1/4" | 6.26 | 159 | 3.66 | 93 | 2-1/2 |
| 16AMH-24-24 | 1-1/2" | 1-1/2" | 6.54 | 166 | 4.06 | 103 | 2-1/2 |
| 16AMH-32-24 | 2" | 1-1/2" | 5.98 | 152 | 3.50 | 89 | 3-1/8 |
| 16AMH-32-32 | 2" | 2" | 6.42 | 163 | 3.66 | 93 | 3-1/8 |
