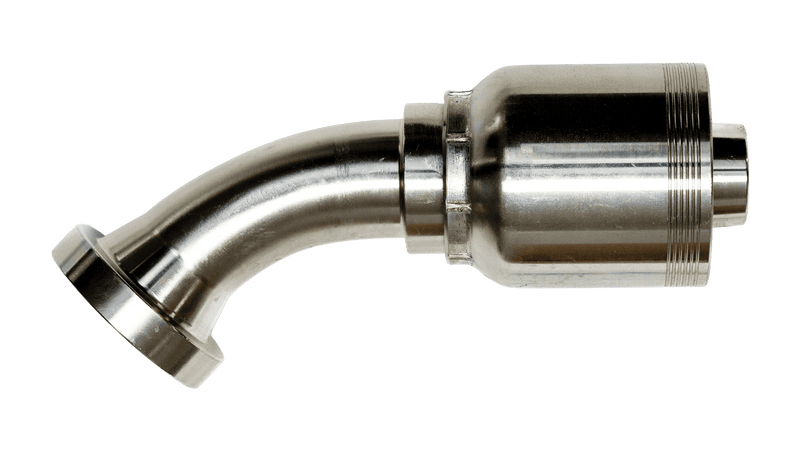

CODE 62 MH SERIES
USE WITH: R6K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | |||
|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | M | ||
| 16FMH-12-12 | 3/4" | 3/4" | 4.96 | 126 | 2.99 | 76 | 1-5/8 | 1.26 | 32 |
| 16FMH-16-12 | 1" | 3/4" | 5.00 | 127 | 3.03 | 77 | 1-7/8 | 1.30 | 33 |
| 16FMH-16-16 | 1" | 1" | 5.67 | 144 | 3.66 | 93 | 1-7/8 | 1.38 | 35 |
| 16FMH-20-16 | 1-1/4" | 1" | 5.75 | 146 | 3.74 | 95 | 2-1/8 | 1.50 | 38 |
| 16FMH-20-20 | 1-1/4" | 1-1/4" | 6.77 | 172 | 4.17 | 106 | 2-1/8 | 1.65 | 42 |
| 16FMH-24-24 | 1-1/2" | 1-1/2" | 7.24 | 184 | 4.76 | 121 | 2-1/2 | 1.93 | 49 |
| 16FMH-32-32 | 2" | 2" | 8.98 | 228 | 6.22 | 158 | 3-1/8 | 2.48 | 63 |
