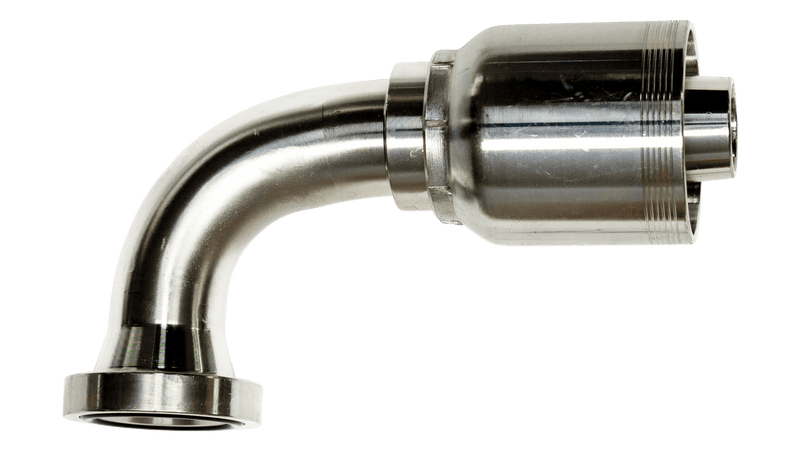

CODE 62 MH SERIES
USE WITH: R6K
| PART NO. | FLANGE | HOSE ID | A | B | F | E | |||
|---|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | INCH | MM | INCH | INCH | M | ||
| 16NMH-12-12 | 3/4" | 3/4" | 4.53 | 115 | 2.56 | 65 | 1-5/8 | 2.60 | 66 |
| 16NMH-16-12 | 1" | 3/4" | 4.61 | 117 | 2.56 | 65 | 1-7/8 | 2.68 | 68 |
| 16NMH-16-16 | 1" | 1" | 5.28 | 134 | 3.27 | 83 | 1-7/8 | 2.99 | 76 |
| 16NMH-16-20 | 1" | 1-1/4" | 5.79 | 147 | 3.15 | 80 | 1-7/8 | 2.99 | 76 |
| 16NMH-20-16 | 1-1/4" | 1-1/4" | 5.24 | 133 | 3.23 | 82 | 2-1/8 | 3.15 | 80 |
| 16NMH-20-20 | 1-1/2" | 1-1/4" | 6.34 | 161 | 3.74 | 95 | 2-1/8 | 3.58 | 91 |
| 16NMH-24-24 | 1-1/2" | 1-1/2" | 6.85 | 174 | 4.37 | 111 | 2-1/2 | 4.25 | 108 |
| 16NMH-32-24 | 2" | 1-1/2" | 6.85 | 174 | 4.37 | 111 | 3-1/8 | 4.65 | 118 |
| 16NMH-32-32 | 2" | 2" | 8.43 | 214 | 5.63 | 143 | 3-1/8 | 5.43 | 138 |
