BSP MH SERIES
USE WITH: R6K
| PART NO. | THREAD | HOSE ID | A | B | E | W | ||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1B1MH-12-12 | 3/4" | 3/4" | 4.76 | 121 | 2.83 | 72 | 1.22 | 32 |
| 1B1MH-16-16 | 1" | 1" | 5.31 | 135 | 3.43 | 87 | 1.34 | 41 |
| 1B1MH-20-20 | 1-1/4" | 1-1/4" | 6.81 | 173 | 3.94 | 100 | 1.58 | 50 |

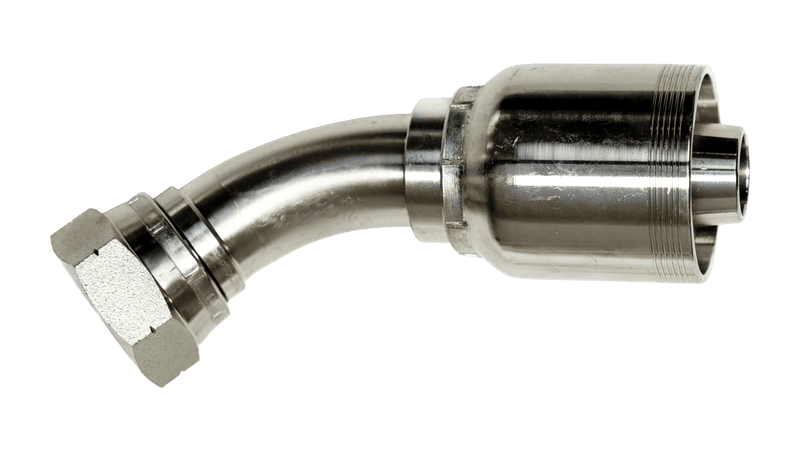

MH Series 1B1MH Female BSP Parallel Pipe Swivel 45° Elbow 60° Cone
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
