BSP MH SERIES
USE WITH: R6K
| PART NO. | THREAD | HOSE ID | A | B | E | W | ||
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1B2MH-12-12 | 3/4" | 3/4" | 4.37 | 111 | 2.44 | 62 | 2.52 | 32 |
| 1B2MH-16-16 | 1" | 1" | 5.08 | 129 | 3.07 | 78 | 2.91 | 41 |
| 1B2MH-20-20 | 1-1/4" | 1-1/4" | 6.18 | 157 | 3.58 | 91 | 3.43 | 50 |

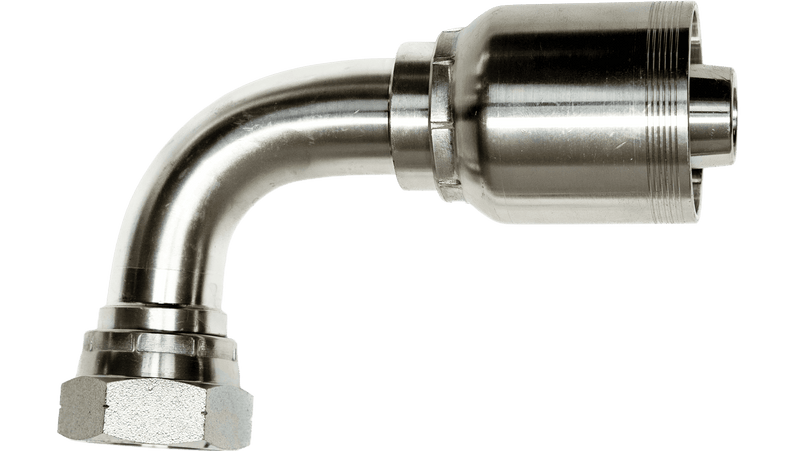

MH Series 1B2MH Female BSP Parallel Pipe Swivel 90° Elbow 60° Cone
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
