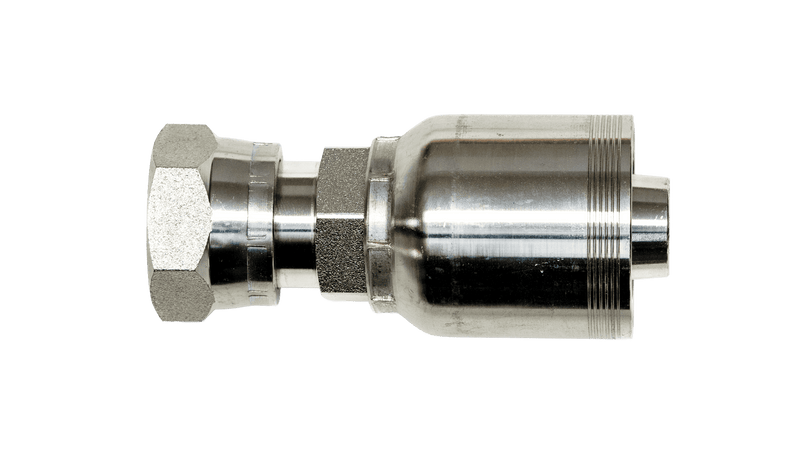

ORFS MH SERIES
USE WITH: R6K
| PART NO. | THREAD | HOSE ID | A | B | H | W | |||
|---|---|---|---|---|---|---|---|---|---|
| INCH | INCH | INCH | MM | INCH | MM | INCH | INCH | ||
| 1JSMH-12-12 | 3/4" | 1-3/16x12 | 3/4" | 3.78 | 96 | 1.81 | 46 | 1-1/8" | 1-3/8" |
| 1JSMH-16-16 | 1" | 1-7/16x12 | 1" | 4.03 | 102 | 2.01 | 51 | 1-3/8" | 1-5/8" |
| 1JSMH-20-20 | 1-1/4" | 1-11/16 X 12 | 1-1/4" | 4.62 | 117 | 2.01 | 51 | 1-3/4" | 1-7/8" |
| 1JSMH-24-24 | 1-1/2" | 2 X 12 | 1-1/2" | 4.69 | 119 | 2.20 | 56 | 2" | 2-1/4" |
